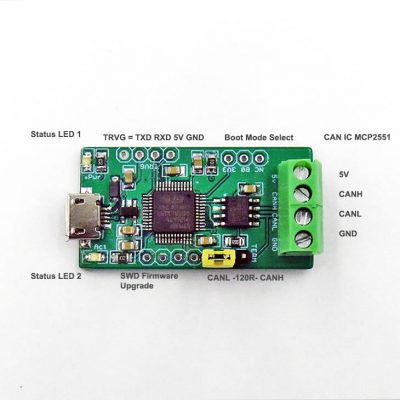

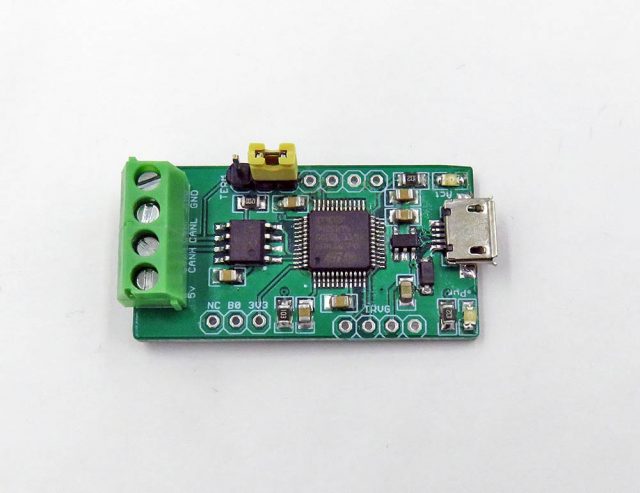

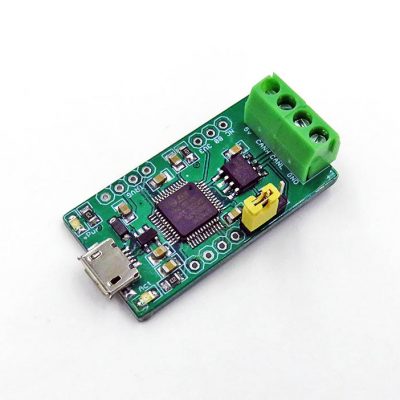

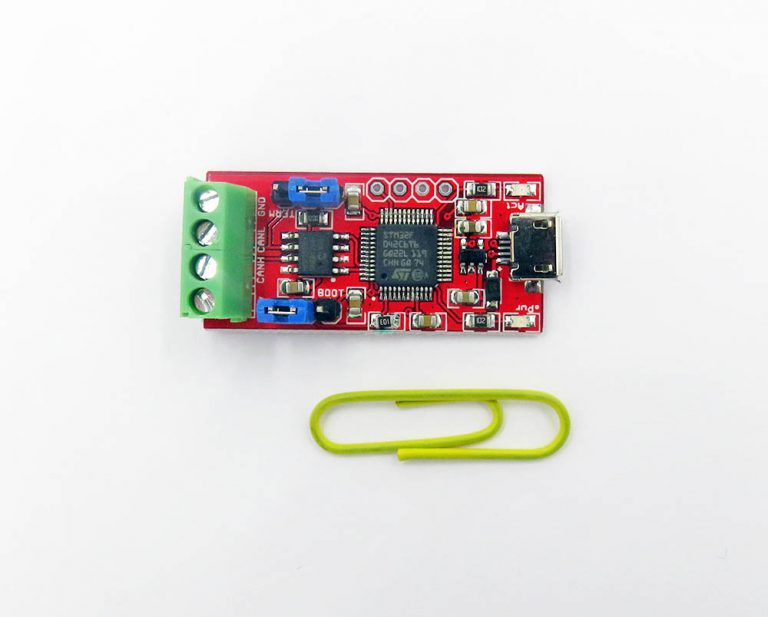

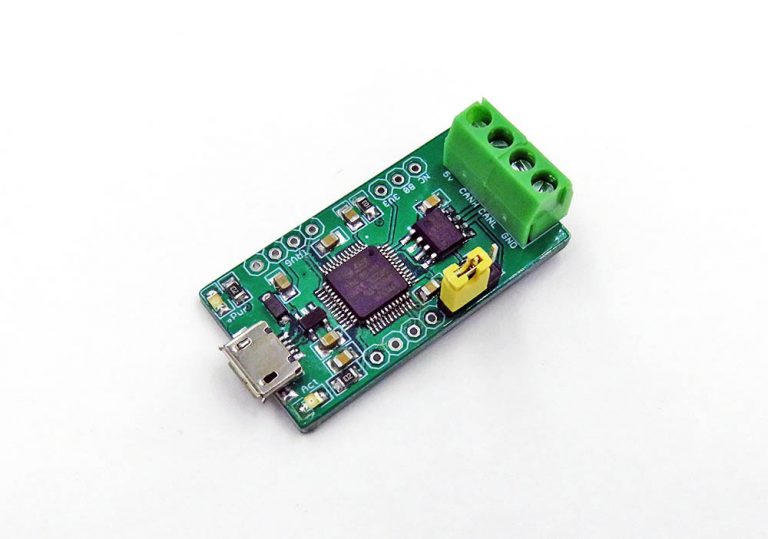

CAN USB Debugger Board, serial2CAN, slCAN R2 -> R2.1

CAN USB Debugger Board, serial2CAN, slCAN R2 -> R2.1

$5.20

SKU: MSP1061 Category: Tags: , , ,

Description

  • Based on STM32F042 MCU
  • On Board MCP2551 CAN IC
  • Based on original USBtin, serial to CAN commnication tool.
  • Compatible hardware: cantact, canable, UCCB, etc.
  • Compatible software (app which compatible with slCAN protocol): cantact, cangaroo, UCCBviewer, Linux CAN utilities etc.
  • On board two programmer LED, PB0 and PB1, default for TX and RX status.
  • Lead out serial port UART2, PA2 and PA3, support other MCUs data input.
  • Connected MCP2551 (R2->R2.1 TJA1050) to CAN port PB8 PB9
  • On board upgrade firmware SWD port, can also upgrade via USB DFU.
  • Support 120R resistor over CAN_L and CAN_H connection.
  • Mini board size, and high speed STM32.
  • If you need switching firmware, better prepare ST-LINK programmer.

R2 -> R2.1

  • Replacing by better transceiver TJA1050, better compatibility.
  • Stock is updating, if you need new version please add order note.

Usage:

  • For default firmware, when board connected to PCB, USB will be reorganized as a serial port, can send commands or data via this port.
  • More information can contact us or see more information on this page.

Additional information

Weight 0.01 kg
