Monster Moto Arduino Shield – VNH2SP30

$7.80

SKU: SDR1070 Category: Tags: , , , , ,

Description

This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Features:

  • Voltage max: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown: Undervoltage and Overvoltage shutdown

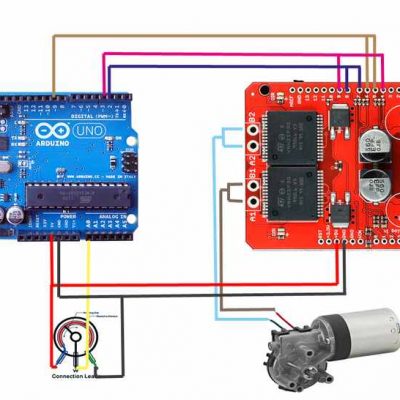

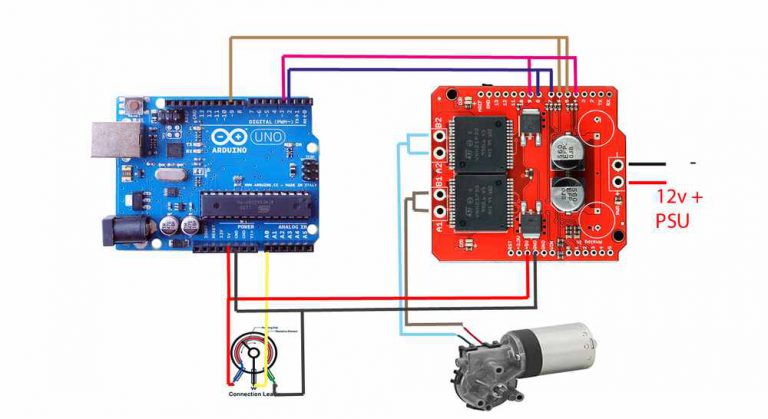

Documentation please see on this page.

Additional information

Weight 0.015 kg
