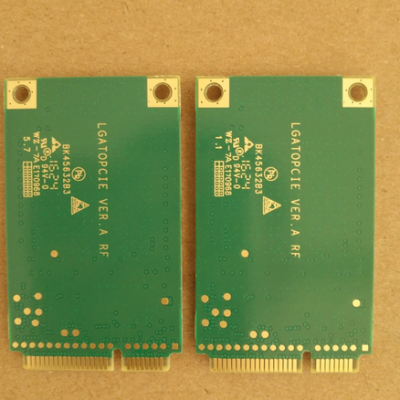

MU709S Huawei WCDMA HSPA+ 3G Module, Mini-PCIe [Frequency]

MU709S Huawei WCDMA HSPA+ 3G Module, Mini-PCIe [Frequency]


SKU: N/A Category: Tags: , ,
View cart


miniPCIE to USB converter development kit please see on this page.

  • MU709s Mini PCIe is a variant version of MU709s.
  • Standard Mini PCIe package;
  • Provide high-quality voice and SMS  functions;
  • Rich extension: FOTA, STK …
  • Built-in TCP / IP protocol stack;
  • Huawei extended AT command set …
  • Application: Car, security monitoring, tracking, mobile payment, industrial routers, industrial flat panel applications such as the preferred!

MU709s Mini PCIe is divided into two sub-models, based on the frequency band requirements of different shipping areas are as follows:

  • MU709s-2 Mini PCIe (UMTS / HSPA + 900 / 2100MHz), support Europe, China and other markets.
  • MU709s-6 Mini PCIe (UMTS / HSPA + 850/1900/2100 MHz), support for the corresponding Asia Pacific, Latin America and other markets


  • Dimension height*width*thickness – 30.4mm*51mm*3.4mm
  • Weight approx.12g
  • Package Mini-PCIe
  • Frequency
    • HSPA+/UMTS dual-band 900/2100 MHz
    • GSM/GPRS quad-band 850/900/1800/1900 MHz
  • Downward speed:21.6 Mbps, 上行: 5.76 Mbps
  • Interface
    • 2 Antenna connectors
    • PCIe interface
    • USB 2.0 High speed
    • PCM Voice
    • SIM Interface (1.8V/3.0V)
  • Power supply voltage 3.0 V to 3.6 V (typical: 3.3 V)
  • Voice  PCM
  • Termperatue -40℃ to 85℃
  • Special Functions
    • FOTA
    • Firmware update via USB
    • STK
    • Jamming Detection
    • Netscan
    • CMUX
    • SSL
    • eCall
  • OS system – Linux, Android

Documentation, hardware guide, datasheet see on this page.
