SIM5360E Mini. DEV Module, USB Modem, 3G HSPA+ WCDMA R1.1

Rated 4.00 out of 5 based on 3 customer ratings
(3 customer reviews)

$33.60 $19.50

SKU: NGS1086 Category: Tags: , , , , , ,

Description

Discount price now.

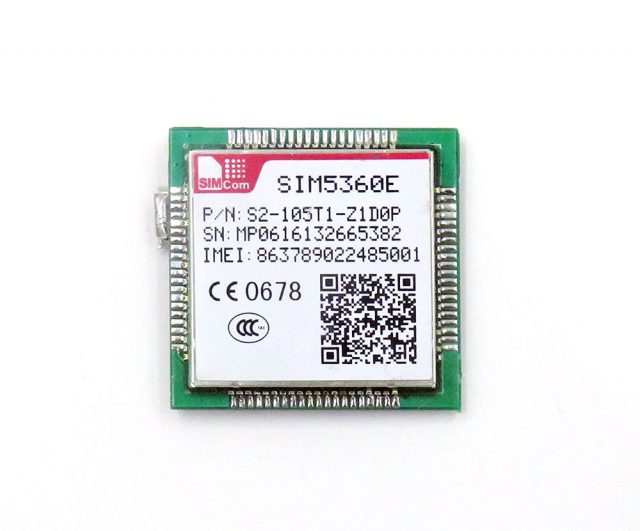

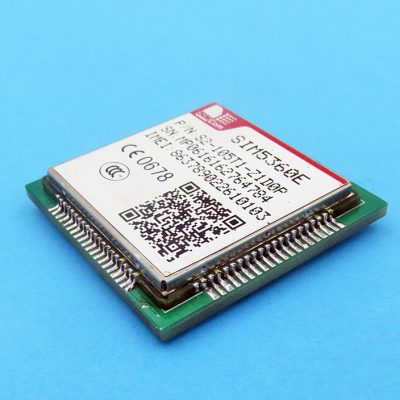

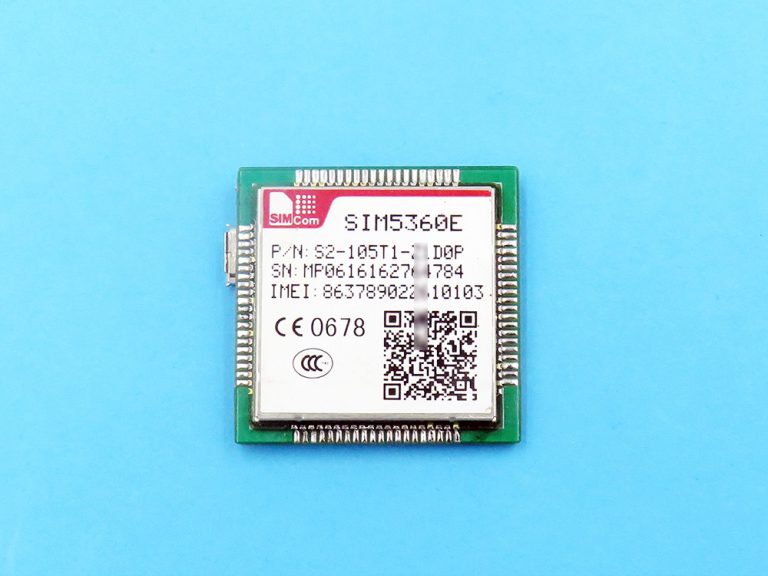

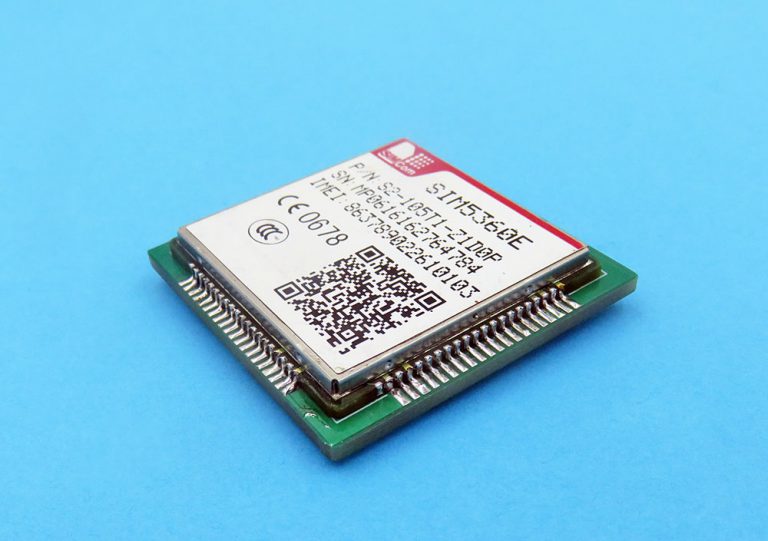

SIM5360E Features:

  • Based on SIMCOM SIM5360E module, HSPA+ DL speed up to 14.4Mbps. E suffix mainly for European market.
  • Should be better than SIM5320 or SIM5300. See more details on simcom site or a rough comparison here.
  • – Dual-Band UMTS/HSPA+ 900/2100MHz
  • – Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  • Also have GPS (GNSS)
  • USB drive well supported for:
    • • USB Driver for Microsoft Windows 2000/XP/Vista/7/8
    • • USB Driver for Windows CE/Mobile
    • • USB Driver for Linux/Android
  • BUT seems not well supported for WIN 10, please notice, can work well in windows 7, even in virtual machine.

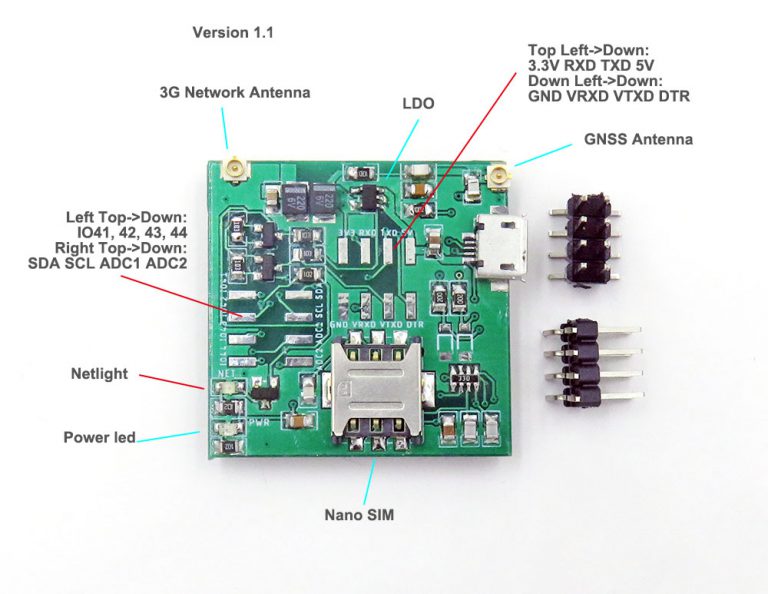

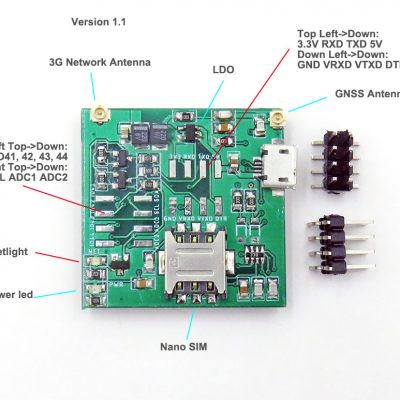

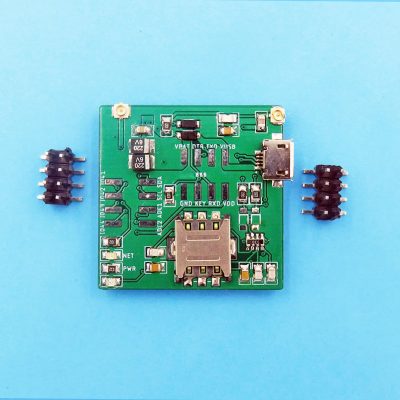

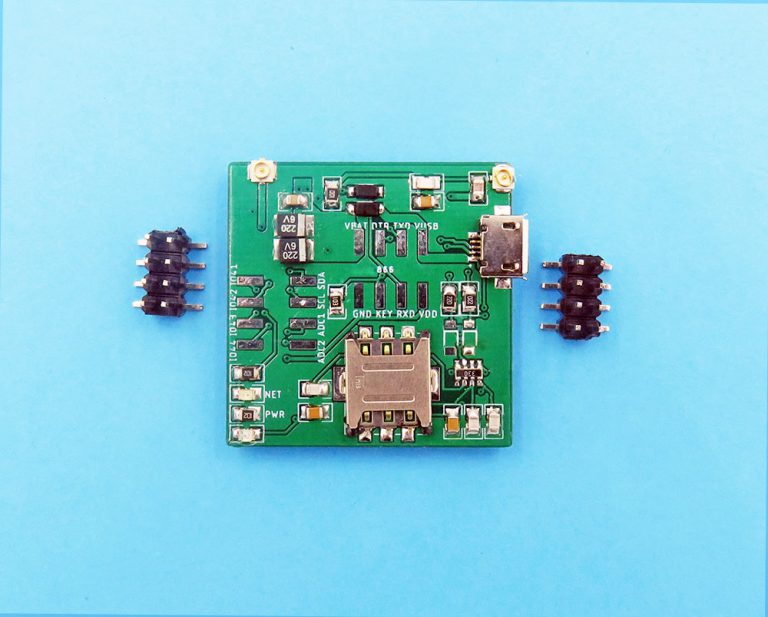

Board Features:

  • Minimium design, only the very necessary functions.
  • Network and GPS IPEX UFL antenna connector.
  • Micro USB interface. You can find five devices after installed driver. For driver, please find here.
  • 2 groups x 2 rows x 4 pins interface.
  • Version 1.0 interface:
    • VBAT, DTR, TXD, VUSB.
    • GND, PWR_KEY, RXD, VDD_EXT
    • IO44, IO43, IO42, IO41
    • ADC2, ADC1, SCL, SDA

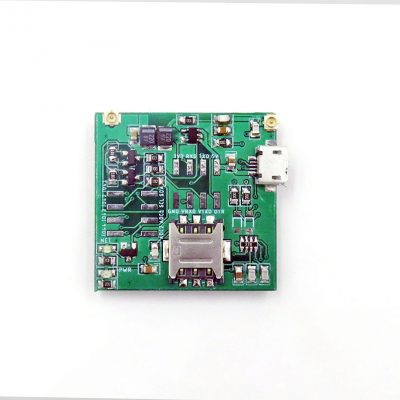

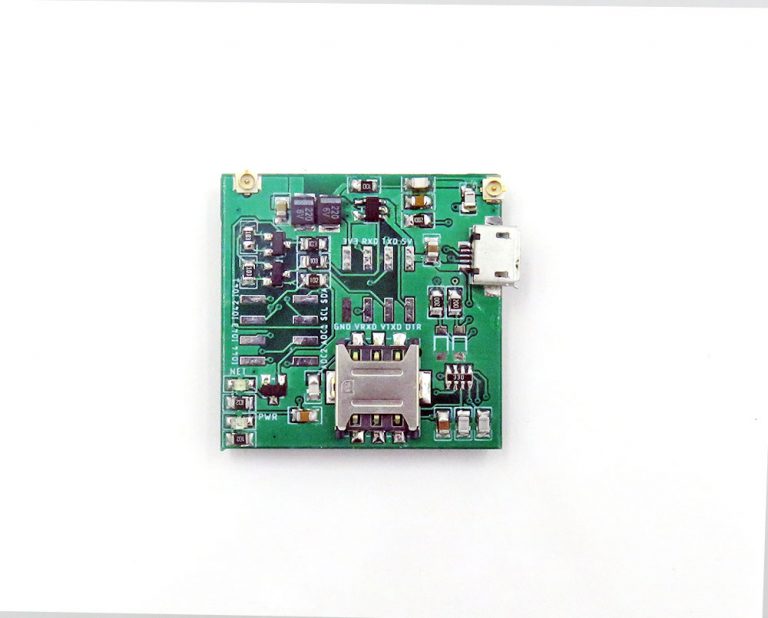

  • Version 1.1:
    • 3.3V RXD TXD (3.3V logic) 5V
    • GND, VRXD, VTXD (5V logic), DTR
    • IO44, IO43, IO42, IO41
    • ADC2, ADC1, SCL, SDA\
  • Included SMD soldering pin headers for this.
  • Fully logic compliant 5V VRXD VTXD UART interface.
  • These extra pins are NOT lead out: DISP_*, PCM_*, UART extra pins like DCD, RI, CTS, RTS, SPK, MIC, KBR*, KEY*, GPIO40, etc
  • USB can power supply for module
  • Auto start / boot when power supplied (for example USB connected)
  • On board one network LED
  • On board power LED
  • Nano sim card interface (iPhone type)
  • Board design for SIM5320, but compatible with 5360, you can see two extras pins of SIM5360 is not connected to board.
  • 5V power supply via LDO up to 12V (max. 16V), 500mA current.
  • Board size 34 x 34 mm.

R1.1 Version added high power LDO, logic shifter to make it 5V fully compatible.

Notice:

  • Not include the antennas, please search in the store.

Demo sketch for debuging please see here.

Additional information

Weight 0.01 kg
Wireless Solutions

SIMCOM

3 reviews for SIM5360E Mini. DEV Module, USB Modem, 3G HSPA+ WCDMA R1.1

  1. Rated 5 out of 5

    Borislav Lovosevic (verified owner)

    The board works as expected and it is the smallest SIM5360E dev. module I know of.
    And cheaper than the SIM5360E alone.
    What I would like to share is that I’ve received it in 5 (FIVE) days (to Croatia, EU)! Amazing!

  2. Rated 3 out of 5

    Chao

    Thanks for the feedback, glad you like!

  3. Rated 4 out of 5

    Borislav Lovosevic (verified owner)

    Pins RXD & TXD works at 1.8V logic, not 3.3V as stated in the product description.
    Be carefull when connecting.
    VRXD & VTXD are at 5V levels as stated and can be easily modified to work at 3.3V logic.
