Quectecl L86 GNSS External Antenna Module[Type]

Description

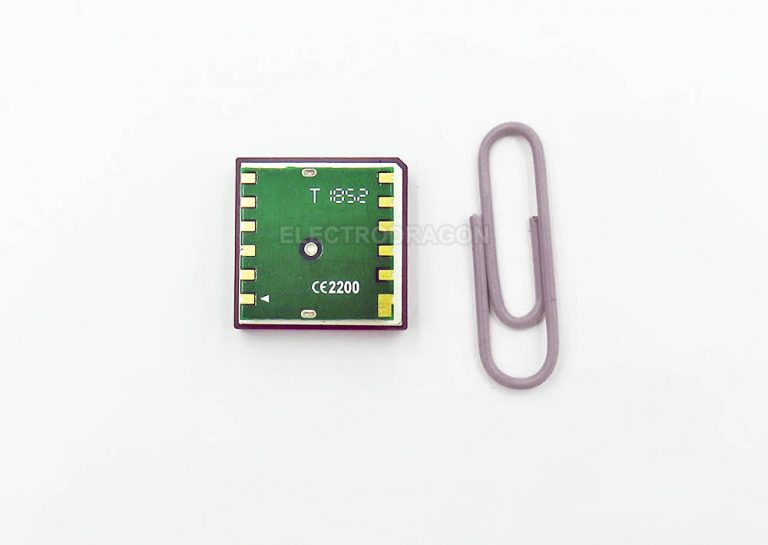

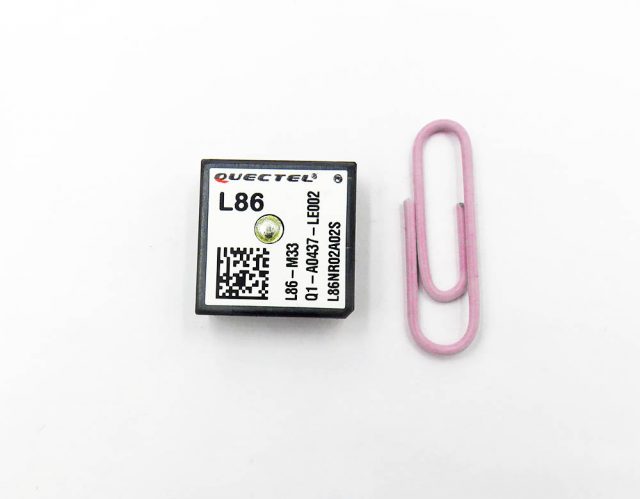

L86 GNSS Module:

• Batch antenna on top of module + Build-in LNA, can use without extra antenna.
• High sensitivity and low power consumption.
• Simply, easy and big pin pads.
• 3.3V power in and serial uart output

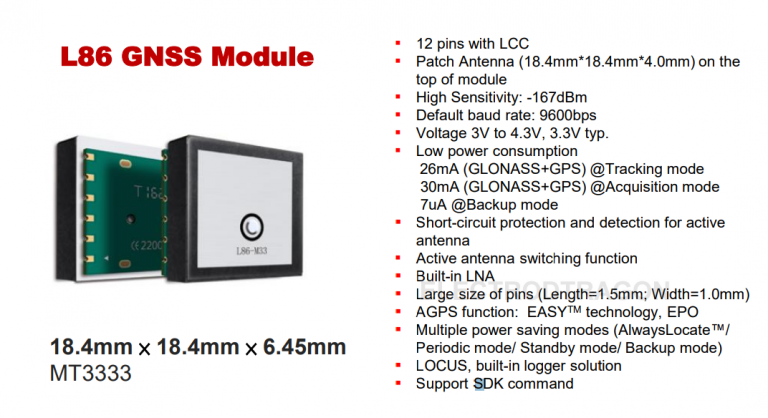

• For more details please see attached image.

Quectel GNSS Series Link: L86/L76/L70

Full all series product overview please see wiki page.

For customer only, all documentation please visit bitbucket folder.
