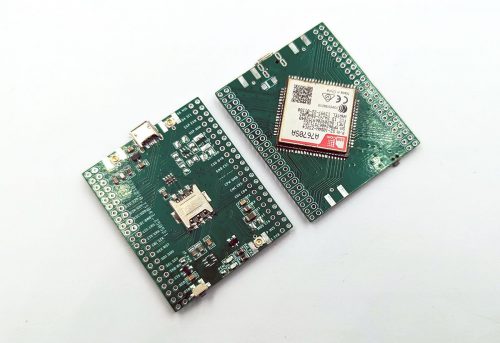

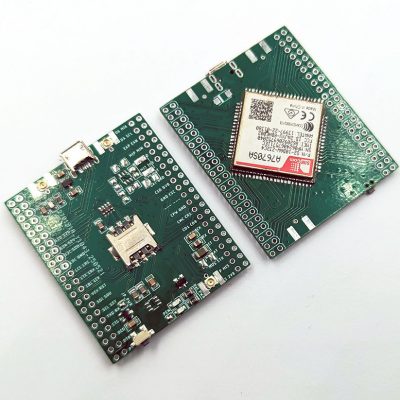

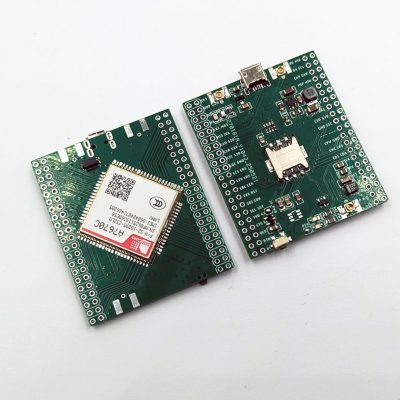

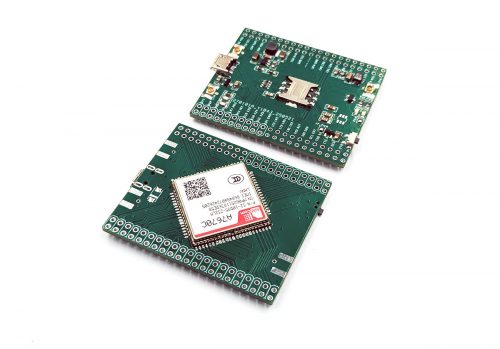

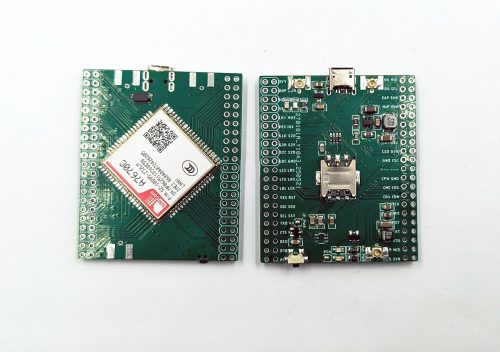

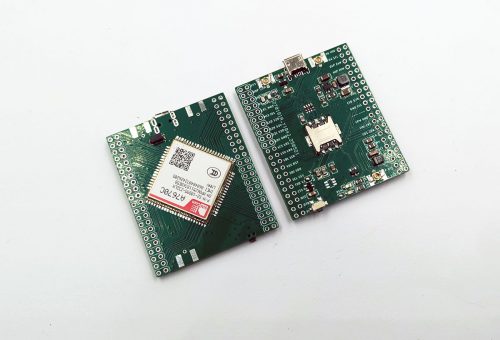

A7670 LTE CAT-1 GSM GNSS BT Full Function Module [VER]

Description

Lead out all the pins to use from the A7670 module. Very cheap full function LTE CAT-1 solution.

• Default already lead the all ncessary antenna port: Network, Blutooth and GNSS. Flexible and verstible antenna socket 3-in-1 antenna port.
• Default amount SIM1 nano socket.
• GPIO controllable IO pin or manual power boot button,  default set to power on directly boot by the jumper.
• USB power and modem Port
• Network status LED and power supply LED indicator via the jumper.
• Default VBAT power supply via USB by a drop diode as a cost-effective option, but customizable as a DCDC regulator.
• Chip option A7670C and A7670SA available.

Smaller and mini size option please find here.

Documentation please see this page.
