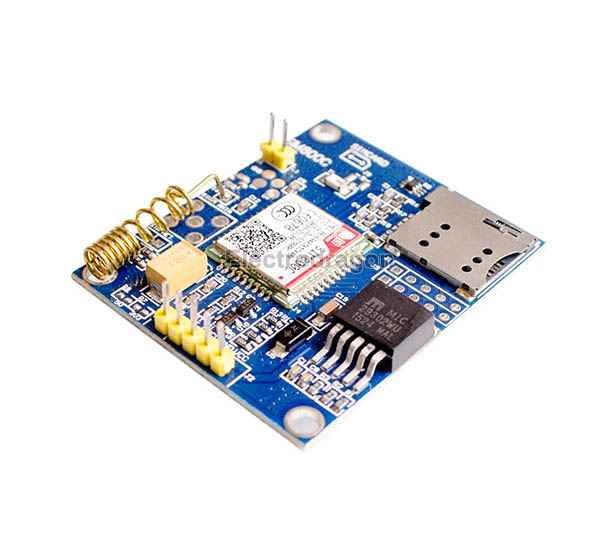

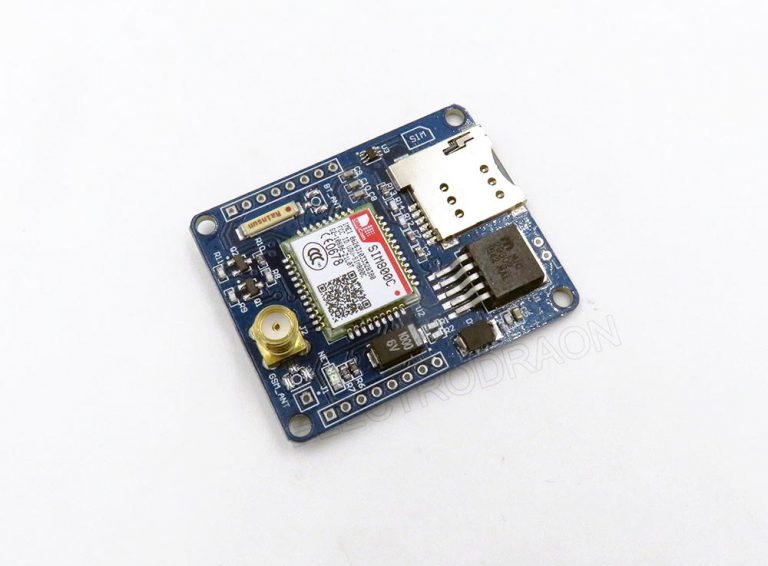

SIM800C Mini. Dev Board [Antenna], R2

$9.70$10.20

Clear
SKU: N/A Category: Tags: , , ,

Description

  • Quad Band 850/900/1800/1900 GSM/GPRS module, can be used worldwide.
  • Support TTS/Bluetooth/DTMF functions, support calling, SMS, GPRS data functions.
  • Smaller size can be used in compatible design
  • Wide input voltage 5-20V by MIC29032 IC, 2A sufficient current support
  • Auto start setup, no need extra power key to boot the module, but reserved pin for this.
  • Including level shifter for MCU
  • Reseverd microphone, speaker pins to use.
  • TTS – play text message by voice
  • DMTF – send or recorgnize the number button pressed by user, and send from module
  • Bluetooth 3.0, onboard BT antenna, enhanced bluetooth signal, support SPP and audio
  • Reserved battery jack to use
  • Reserved IPX, SMA, pin spring antenna to slec
  • Spring antenna version or rod antenna version avaialble, each purchse is for one type only. (Board can also work without any antenna in open area)

Buck order price 30-99pcs 15% off, 100+pcs 20% off, price auto update in cart page.

Schematic please refer to “sim800 full-02” in wiki page.
