SIM7080G CAT-M NBIOT Global GNSS Mini Module

Description

SIM7080G Features:

• Global CAT-M and NBIOT bands, design for low latency, low throughput data communication applications
• Low power PSM mode can extend battery life to 10 years
• Rich interface UART, GPIO, PCM, SPI, I2C etc
• Compact size, similar to SIM868
• GNSS location tracking

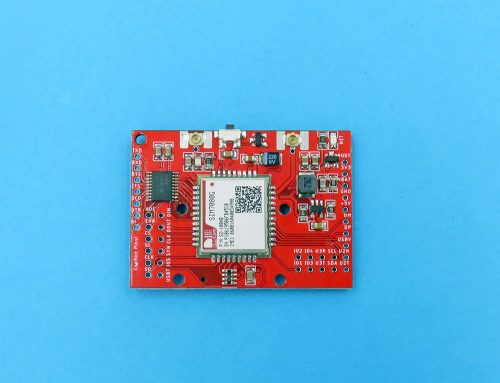

Board Features:

• Lead out all the function pins
  • TXD / RXD / RTS / CTS / DCD / DTR / RI (via logic shifter)
  • ADC / 1V8 / CS / SI / CLK / SO (SPI)
  • DIN / DOUT / CLK / SYNC (PCM) / IO5 / USB_BOOT
  • IO1 / IO3 / U3T / SDA / U2T
  • IO2 / IO4 / U3R/ SCL / U2R
  • MCU_BOOT / EXT_3V3 / VBAT / GND / 5V / DM / DP / USB_V
• On board 5V to Vbat 2A DC/DC regulator
• On board net led, manual boot key
• Nano sim card slot (smallest phone type)
• Three-in-one antenna connector, default solder IPX U.fl connectors

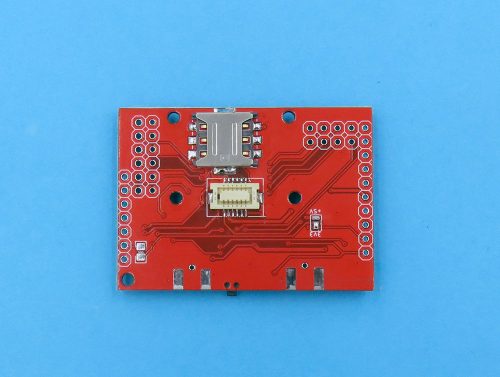

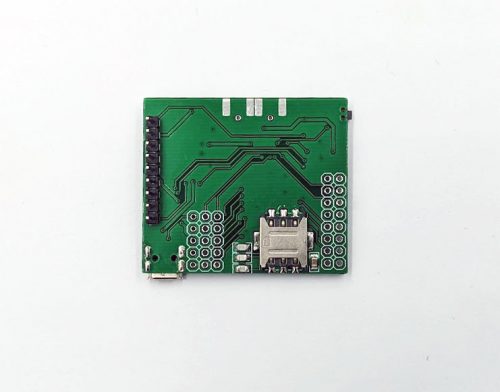

• Back side ED-BTB board to board connector:
  • Includes pin: boot / DTR (PSM wake up) / SIM TXD/RXD / 5V / 3V3 and GND
  • Tested can be well controlled by all of board platform board via uart interface
  • For this series details, please check this page.

Documentation please see on this page.
