STM32M2M Low-Power Wireless System Board

$10.40$17.10

Clear

Description

Board Features V2:

  • More flexiable board design, modulized functions:
  • Most features similar to V1 board.
    • Based on STM32L151 control chip
    • 1x channel sensor data collection
    • 1x RS233 interface communication
    • 1x M2M Wireless communication
    • USB Charge, battery power supply, low power usage
    • 2x programmable LEDs, and 1x programmable button

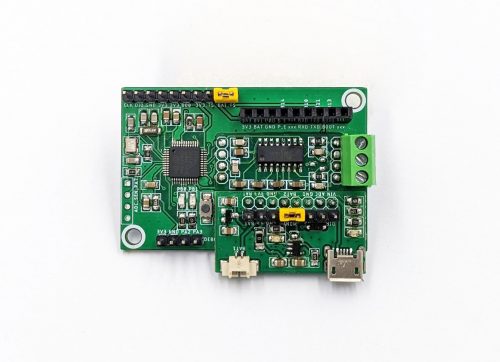

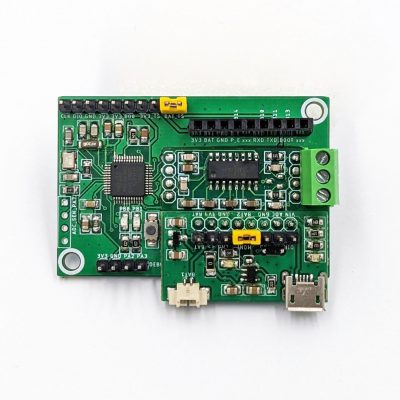

  • Board image is shown in color green

Documentation of V2 board please see on this page.

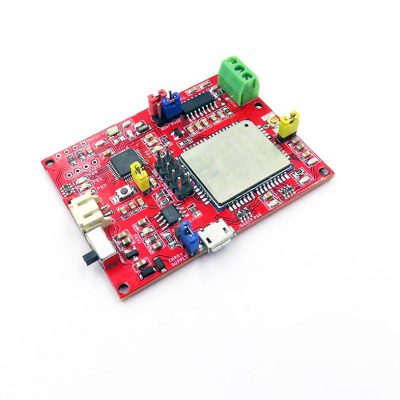

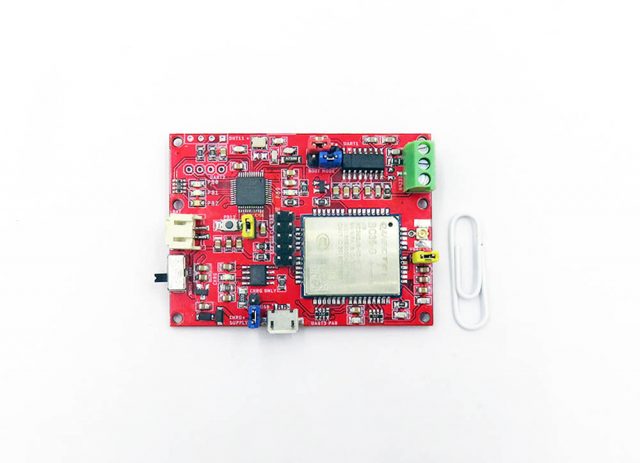

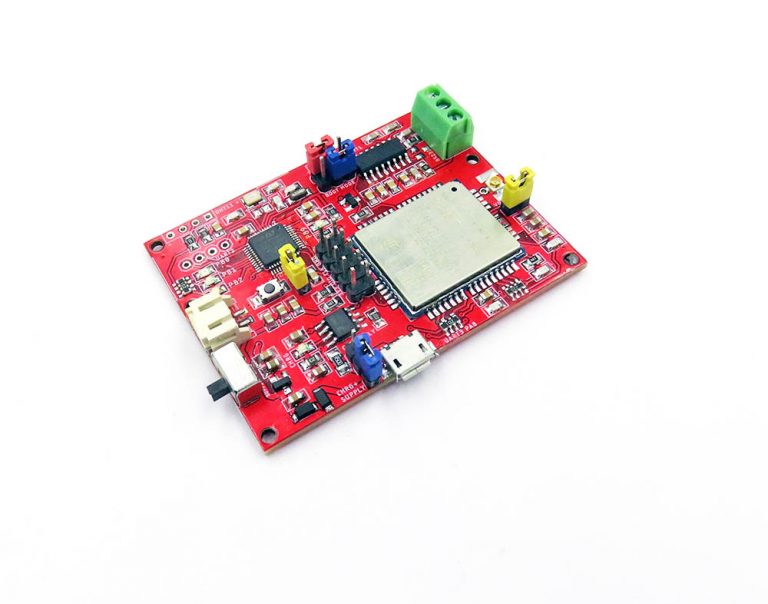

Board Features V1:

  • Support communicatoin via
    • BC35G NB IOT low power module
      • Frequency Band: B1 / B3 / B5 / B8 / B20 / B28 (B28 is still developing)
      • Cover many common frequency bands, but please check before order.
      • Communicate via UART3 of STM32
      • Jumper for checking power use.
      • On board extra reserved pins
      • SIM slot on back side of PCB board.
    • RS-232 Port
      • Communicate via UART1 of STM32
      • Jumper for checking power use.
  • Control by STM32L151 low power microcontroller
    • Jumper for checking power use.
    • PB0 PB1 PB2 PB9 programmable LED
    • PB12 programmable button
    • Reserved UART2 interface.
    • Program SWD port.
    • On board reserved DHT11 temperature sensor port via PA7
  • On board battery charger controller TP4056
    • Charge via micro USB.
    • Battery read via resistor divider by STM32 chip PA0 pin.
    • All battery protection: over current, over voltage, etc.
  • For Charge jumper and switch:
    • For charge only: jumper – top, switch – top
    • For battery power only: jumper – Any, switch – bottom
    • For USB power only, removed battery: jumper – bottom, switch – bottom
    • For USB power + charging battery together: jumper – bottom, switch – top

Documentation of V1 board please see on this page.

Additional information

Weight N/A
Versions

R1, R2
