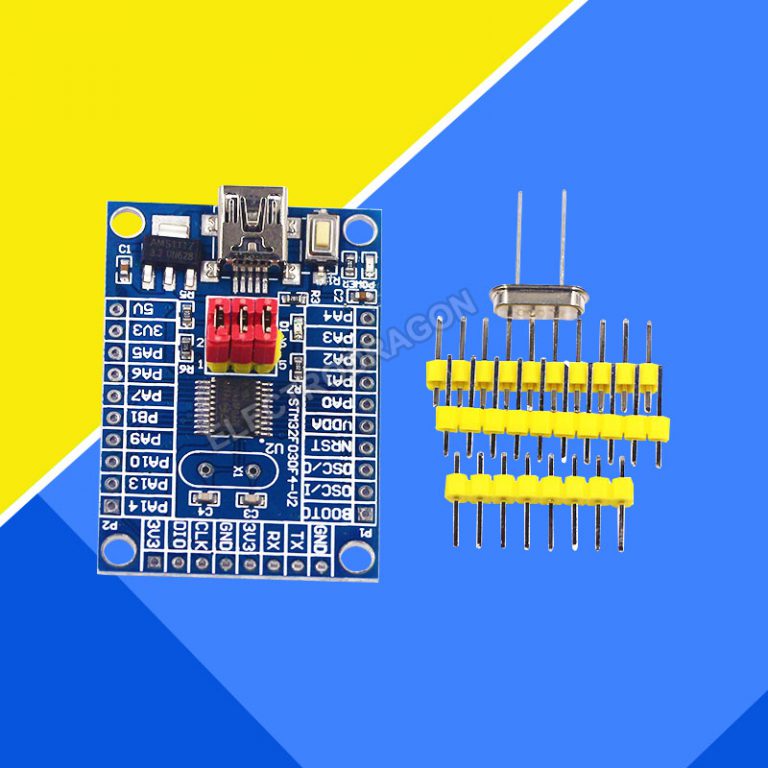

ARM M0 STM32F030F4P6 Mini. Dev. Board

$2.00

SKU: STM1001 Category: Tags: , ,

Description

STM32F030F4P6 is a 0.5 USD IC, very cheap and powerful, in M0 series.  STM32 is compatible with arduino IDE, this IC maybe not yet, but still worth to try it.

Features:

  • All IO port leads (with silk screen, easy to add a variety of modules)
  • The serial port leads alone.
  • Multiple groups of 3.3V 5V power supply, it is convenient to supply power to the external function module.
  • A user LED light, A power LED light, A reset button
  • Serial download or BOOT can be selected
  • Support SWD (serial wire debug) download interface (through JLINK can download, debugg with KEIL version 5.0)
  • Support Serial TTL download

Documentation: Schematic please see wiki page.

STM32F030F4P6 Features:

  • Core: ARM® 32-bit Cortex® -M0 CPU, frequency up to 48 MHz
  • Memories
    • 16 to 256 Kbytes of Flash memory
    • 4 to 32 Kbytes of SRAM with HW parity
  • CRC calculation unit
  • Reset and power management
    • Digital & I/Os supply: VDD = 2.4 V to 3.6 V
    • Analog supply: VDDA = VDD to 3.6 V
    • Power-on/Power down reset (POR/PDR)
    • Low power modes: Sleep, Stop, Standby
  • Clock management
    • 4 to 32 MHz crystal oscillator
    • 32 kHz oscillator for RTC with calibration
    • Internal 8 MHz RC with x6 PLL option
    • Internal 40 kHz RC oscillator
  • Up to 55 fast I/Os
    • All mappable on external interrupt vectors
    • Up to 55 I/Os with 5V tolerant capability
  • 5-channel DMA controller
  • One 12-bit, 1.0 μs ADC (up to 16 channels)
    • Conversion range: 0 to 3.6 V
    • Separate analog supply: 2.4 V to 3.6 V
  • Calendar RTC with alarm and periodic wakeup from Stop/Standby
  • 11 timers
    • One 16-bit advanced-control timer for six-channel PWM output
    • Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
    • Independent and system watchdog timers
    • SysTick timer
  • Communication interfaces
    • Up to two I2 C interfaces
    • Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
    • Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames
  • Serial wire debug (SWD)

Additional information

Weight 0.01 kg
