The HC32L130/HC32L136 series is an MCU with ultra-low power consumption and wide voltage operating range designed to extend the battery life of portable measurement systems.
Integrated 12-bit 1M sps high-precision SARADC and integrated comparator, operational amplifier, built-in high-performance PWM timer, LCD display, multiple UART, SPI, I2C and other rich communication peripherals
Built-in AES, TRNG and other information security modules have the characteristics of high integration, high anti-interference, high reliability and ultra-low power consumption.

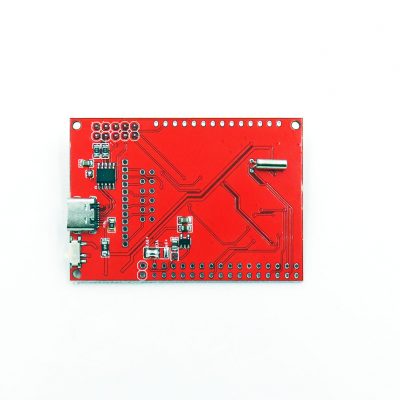

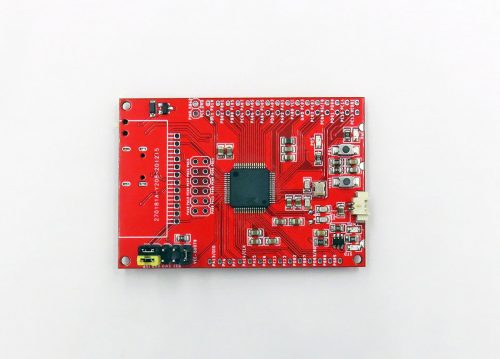

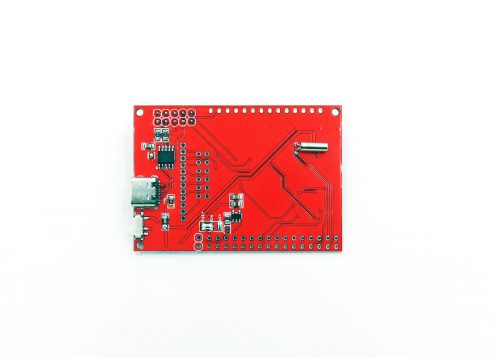

Board Features:

  • HC32L136K8TA LQFP-64 pins chip, lead out all the pins

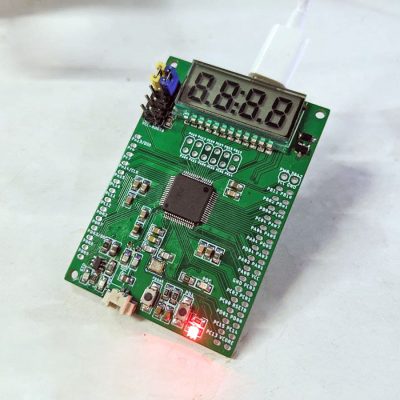

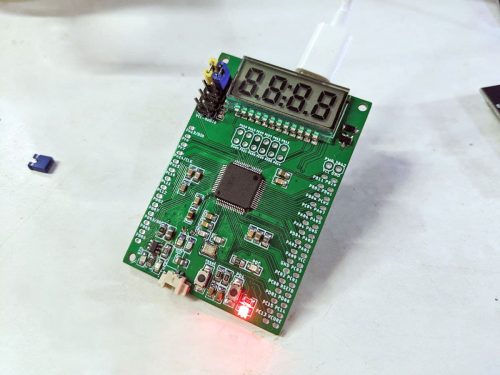

  • Reserved low power segment display, you can buy it alone from here, or use the IOs as free.
  • On board lithium battery port, and lihitum battery charge management chip
    • Includes standby and charging indicator LED
  • Programmable  PD4 input button, and PD5 output programmable LED
  • On board USB-TTL Serial communication chip:
    • Programming, debug and charging bettery via USB, use HDSC ISP programmer.
    • Default connect USB to ISP via jumper
    • Set BOOT0 to VCC to enter into flash mode
  • On board power on/off switch, power led indictor, selectable VCC 3.3V or 5V

Documentation please see this page.

Additional information

Weight 0.03 kg
