Description

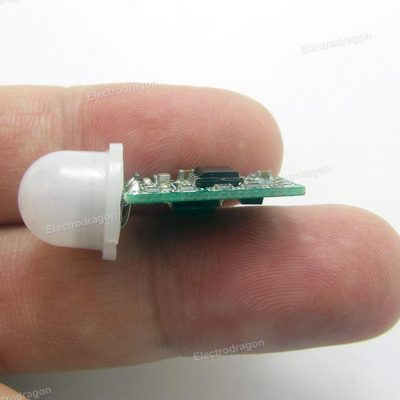

  • Smaller size than AA battery, L 27 * W 10 *
  • Lens Diameter 10 mm (11 mm outline)
  • 3-5V wide voltage input
  • Simple peripheral circuit to keep the small size.
  • High (Detect) or low TTL output 4.4V
  • Putput delay 20s (Delay does not support adjustment)
  • 1-2mA standby current
  • 10mA working alarm current.
  • Sensing distance: 5M max.
  • 140 wide angle degree
  • Pin definitions: VCC, GND, Data. Pin pitch 2.0mm, you can find 2.0 pin pitch prototype cable in our store.
  • Sensing frequency: 1hz

Sensing distance, angle, delay not able to be customized. Simple testing demo video here.

Buck order price $2.5 for more than 50pcs, price will auto update in cart page.

Package not include the pin connectors, it is reference only.

Documentation please refer to this product.

Additional information

Weight 0.015 kg

3 reviews for Super Mini PIR Motion Sensor

  1. 5 out of 5

    geraldhasmail (verified owner)

    The distance on this sensor is great for small projects, about 4 meters, very small, it doesn’t take up a lot of space. I havent had any issues with any of the ones I’ve ordered.

  2. 1 out of 5

    Chris

    unfortunately i have no luck with this item.

    1. it will not work on 3,3V. On 5v it’s working.

    2 it is not reliable.
    A further investigation told me that when it’s dark, the sensor activates by itself en not reliable . when its light its working well.
    I tried several test in dark boxes and this is the result.

    It’s a pity because is very small en easy to use.

  3. 4 out of 5

    Scott J

    this module is very sensitive to DC power noise. using an AC offline DC switching module to convert 120VAC to 5V with ESP8266 module, this module will constantly false trigger. I helps to use pi filter with 10mH and two 470uF, then filter false triggers in software. They are handy, but beware of glitches.
