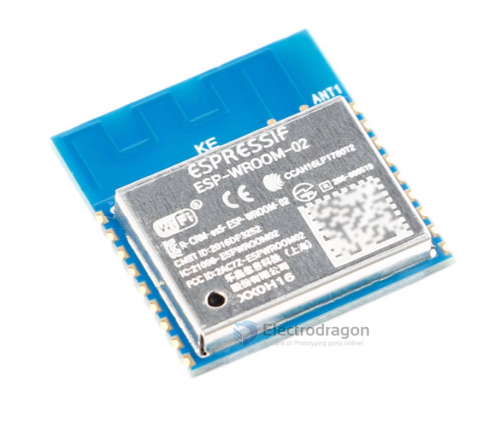

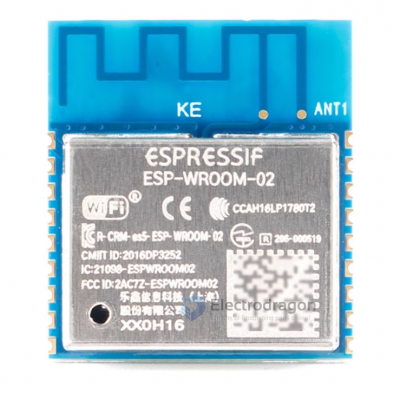

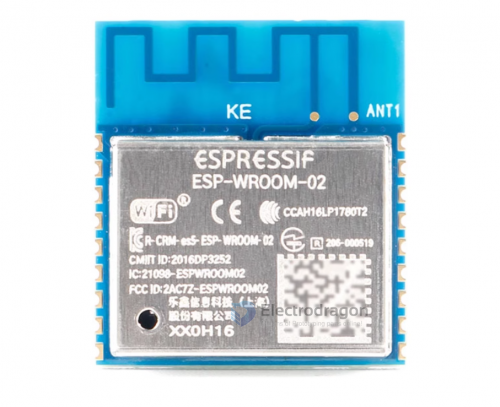

WROOM-02 WIFI Module, ESP8266, 2MB [D/U]

$2.60$2.90

SKU: N/A Category: Tags: , , , ,
Clear

Description

Variation:

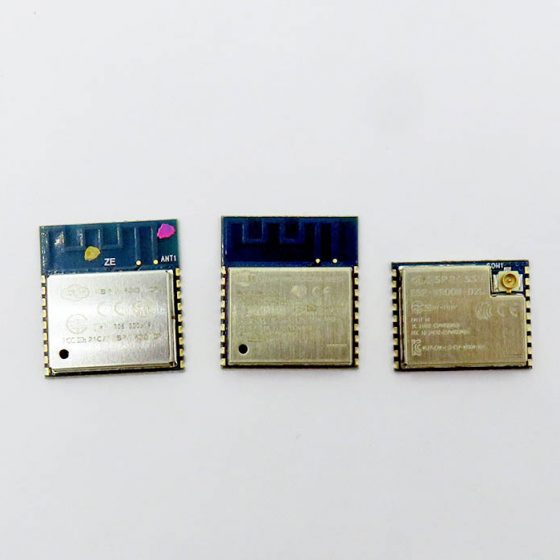

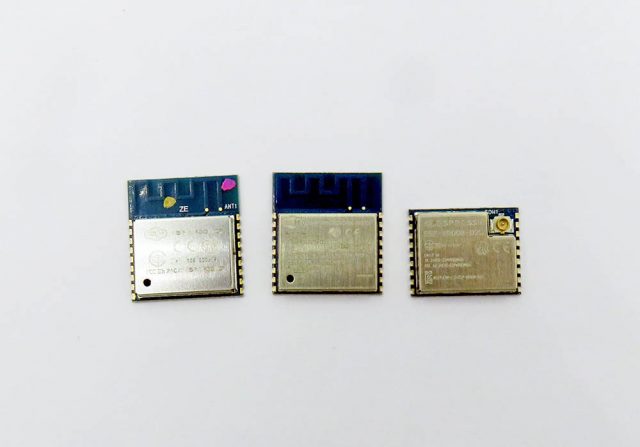

  • WROOM-02D/U further optimized RF performace, pin-to-pin compatible with WROOM-02
  • WROOM-02D – on board PCB antenna
  • WROOM-02U – on board IPEX antenna connector, can mount external atenna.

Features

  • ESP-WROOM-02 is a low-power 32-bit MCU Wi-Fi module, based on the ESP8266 chip. TCP/IP network stacks, 10-bit ADC, and HSPI/UART/PWM/I2C/I2S interfaces are all embedded in this module.
  • ESP-WROOM-S2 uses a 2 MB SPI flash connected to HSPI, working as the SDIO/SPI slave with the SPI speed of up to 8 Mbps.
  • ESP8266 Module can be easily integrated into space-limited devices, due to its small size of only 18mm x 20mm (ESP-WROOM-02) / 16 mm x 23 mm (ESP-WROOM-S2).
  • Reliable and most certificate:
    • Wi-Fi Alliance, SRRC, FCC, CE, TELEC, IC & KCC Certified
    • RoHS, Halogen Free, REACH & CFSI Compliant
    • HTOL, ESD-HM, MSL, μHAST, HTSL
    • Output Power: +22dBm peak power in FCC certification
  • ESP8266 Module can operate in low-power connectivity mode; for instance, if it operates in DTIM10, it only consumes 1.2mW while maintaining a Wi-Fi connection. The module also integrates an SPI flash of 16 Mbits used for storing user programs, data and firmware.
  • Module is directly supplied from Espressif, sufficient stock and constant price.

Documentation:



ESP8266 Module Series
ESP-12F Common ESP8266 module version
ESP-12S  Optimized from esp-12f, better antenna singal
ESP-07S  Pin compatible with esp-12, IPEX connector to get greater signal
ESP-01S  General DIP PTH version, less pin lead out, easy to use
ESP-01M  Vertical stand on your PCBsave space and better signal
WROOM-02 Most certificated, best design by original Espressif.



Additional information

Weight N/A
ESP

ESP8266

WROOM-02, WROOM-02D, WROOM-02U
