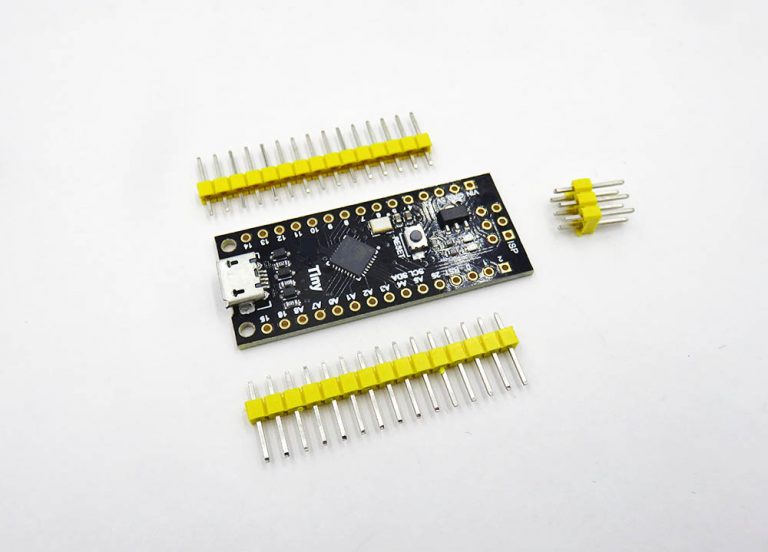

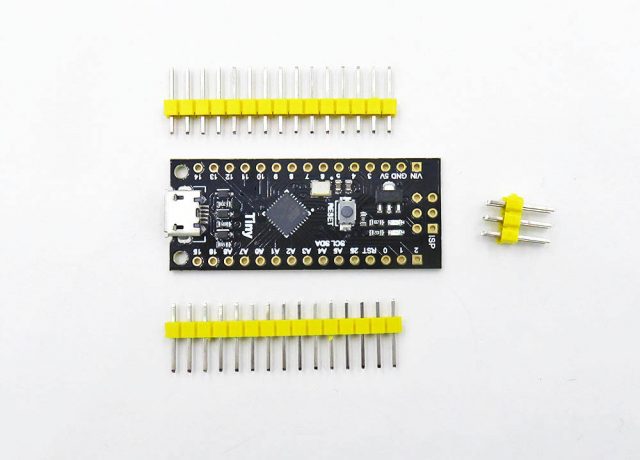

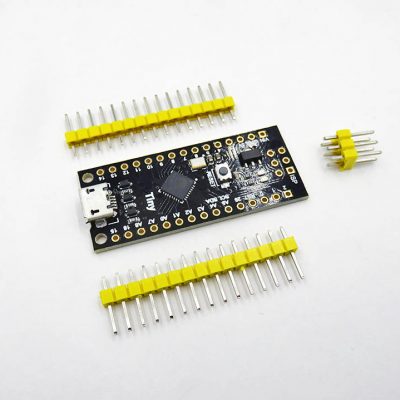

ATTINY88 Mini Development, Arduino Nano Compatible

Description

ATTiny88 (16.0 mhz) based microcontroller development board similar to the Arduino series, only cheaper, smaller, and a bit less powerful.  Compatible with arduino IDE.

• Support for the Arduino IDE 1.0 + (OSX / Win / Linux)
• Power supply over USB or External Source-5v or 7-35v (12v or less recommended, automatic selection)
• On-board 500ma 5v regulator
• Built-in USB

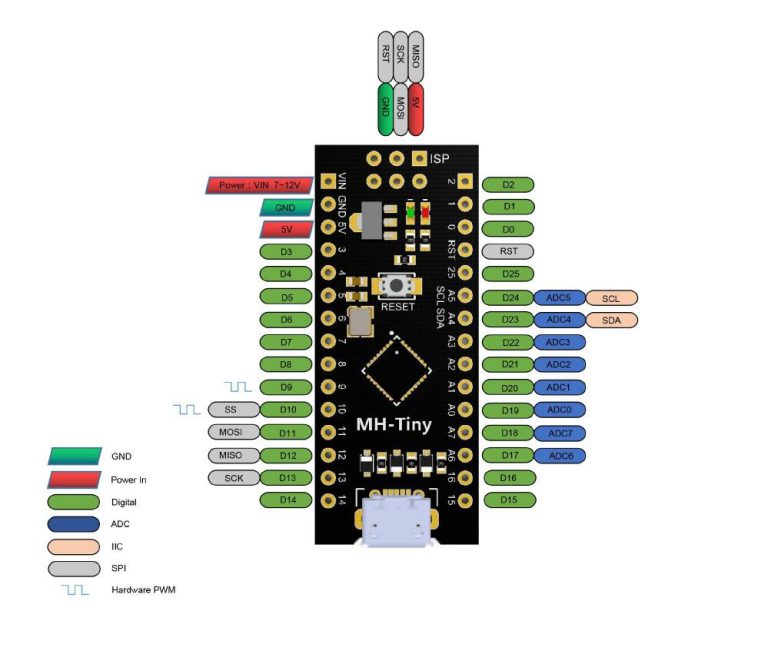

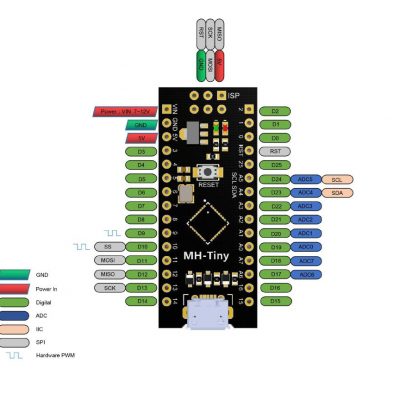

• 26CH I/O Pins (2 are used for USB only if your program actively communicates via USB, otherwise you can use all if you are programming via USB)
• 8k Flash Memory (over 6k after bootloader)
• I2C and SPI
• 26-PWM (26 pins with software PWM, only two (D9, D10) with hardware PWM)
• ADC on 8 pins
• Power LED and test / status LED
• Size (mm): 44.5×18.3×3

Documentations:

• Board file please add json link.
• USB driver link.
