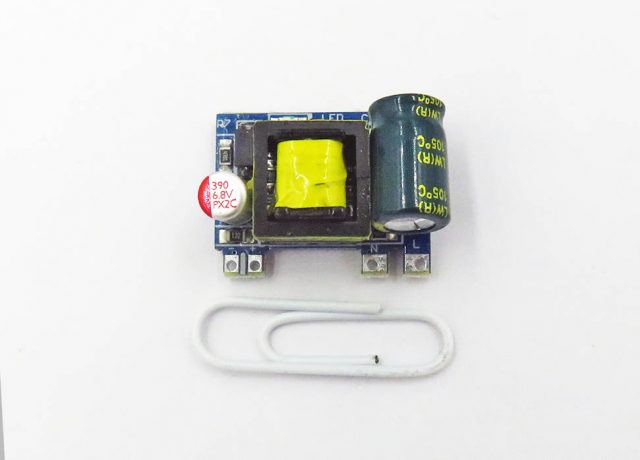

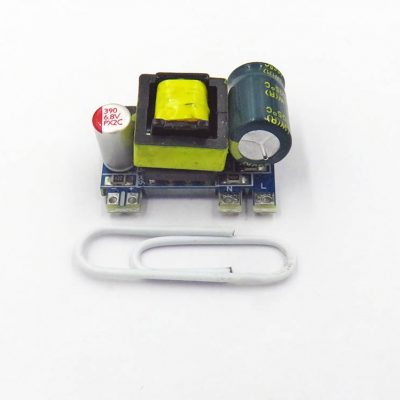

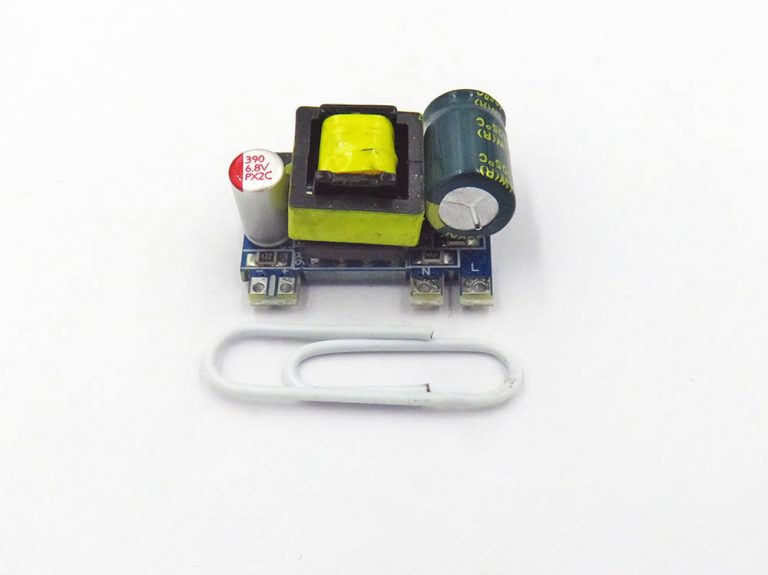

Mini AC-DC Isolated Power Module, 5Vout 700mA 3.5W

$1.17

SKU: OPM1178 Category: Tags: , ,

Description

Product Features

  • Input voltage range: AC50V-277V; DC70V-390v
  • No-load power: <0.05W
  • Full load power: <4W
  • Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
  • Output voltage: 5V + a 0.15v no load and full load, light load minus 0. IV, pick up when heavy load, 50% load ripple 60mV
  • Output current: 5V: 0mA to 700mA, enter constant current mode when fully loaded
  • Test resistance: 7 ohms (49V) for 5V
  • Output indicator. Green light
  • Output power: 3.5W efficiency is about 80%
  • Output protection: overvoltage, overcurrent, overtemperature, overcurrent, short circuit protection, etc.
  • Working temperature: 20 degrees to 70 degrees, advanced green gold capacitor temperature 105 degrees 10,000 hours, 70 degrees is greater than 5 years, normal temperature is about 20 to 50 years (not recommended above 70 degrees), output filtering High quality solid capacitor

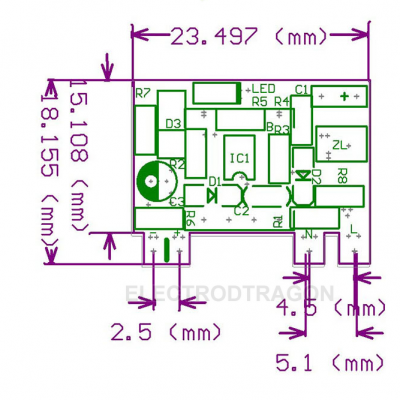

Module size 23.5 x 15 x 13.5 mm.



Additional information

Weight 0.01 kg
