AC-DC 5V/2A 10W Power Module
- Additional information
- Reviews (5)
- Product Enquiry

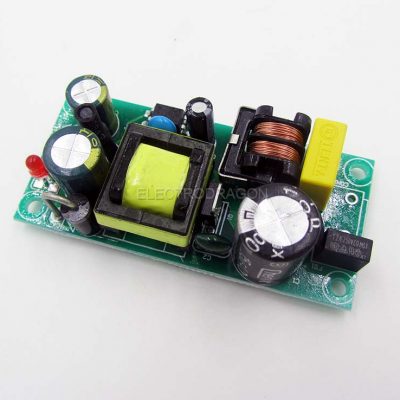

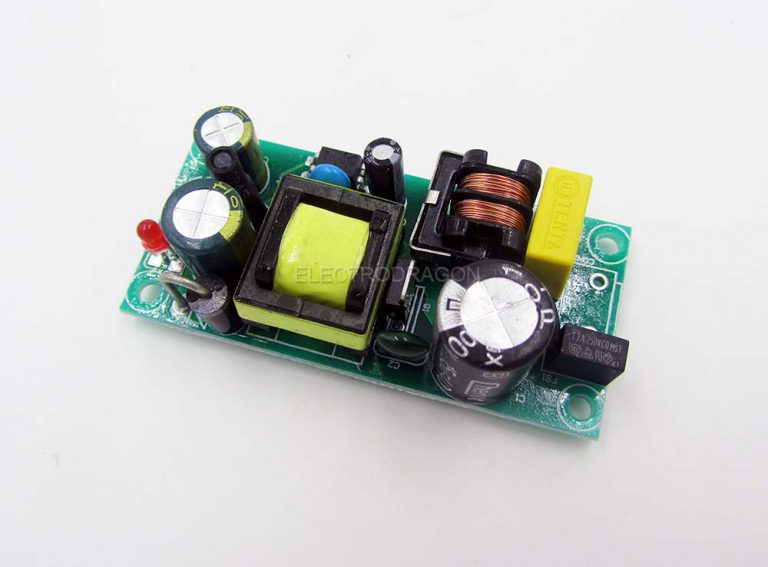

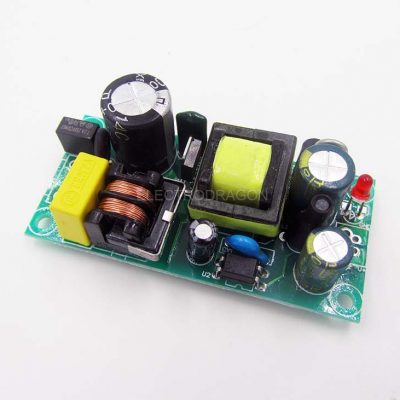

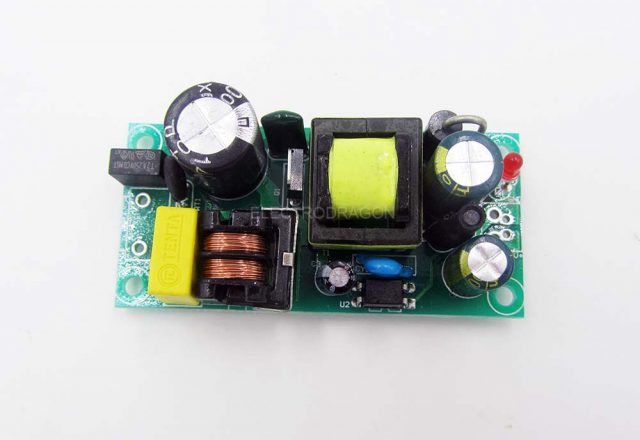

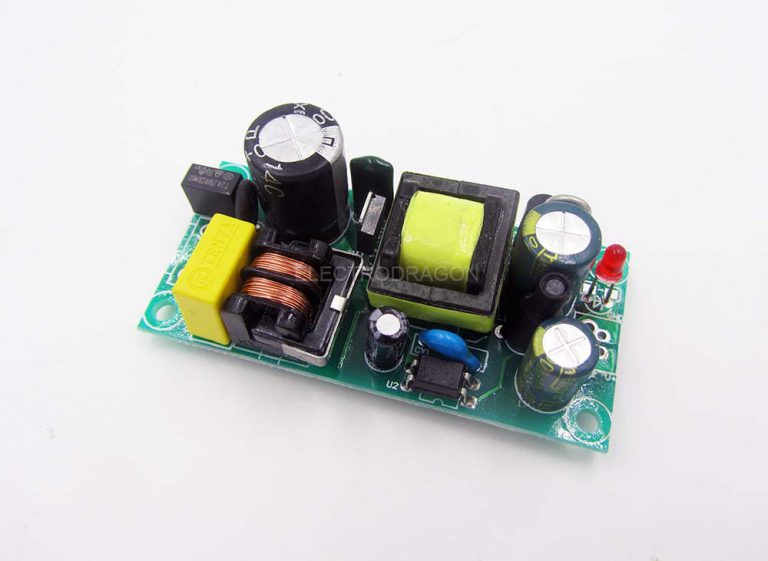

This power supply is fully isolated industrial internal power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A output voltage, 431 regulated output with EMI filter circuit, with status LED, with installation holes, cost-effective.
- Input (full load): AC 85-265V or DC 100v-370v
- Input current (full load): 0.027(AC110V) 0.0136(AC220V)
- Input inrush current (full load): 20A
- Output: 5V, 0-2A, 2.2A max, output voltage range 4.8-5.2V, 60mV voltage wave
- DC output power: 10W
- Efficiency: 80%
- On/off overload range: 10%
- Output upward time: 100ms

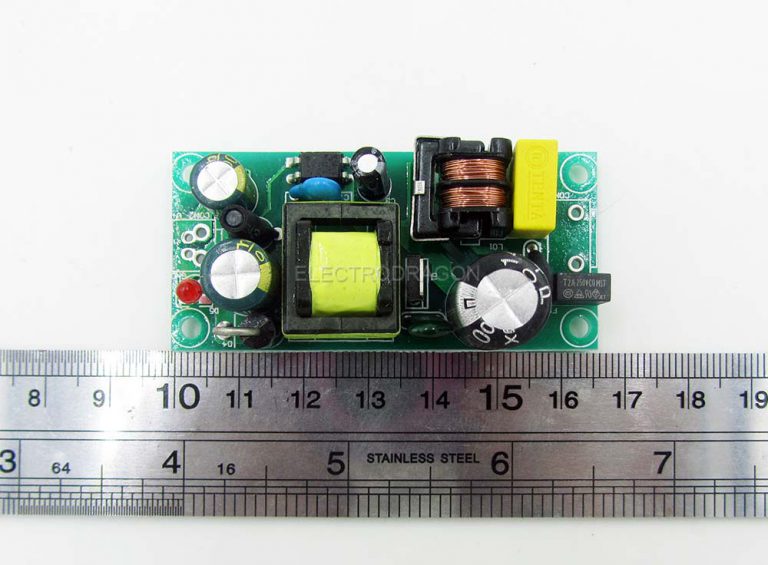

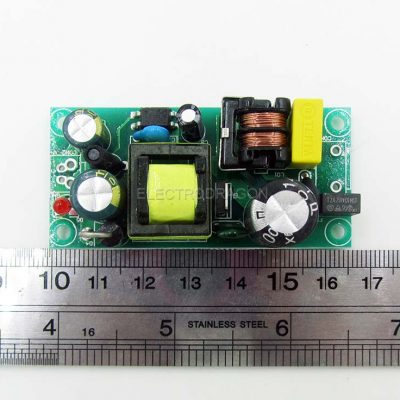

- Size: 6.6*3.0*2.1 CM
- Pin Definition one side marked AC N, AC L, and another side is 5V, gnd.
- On board status LED
Protection: overload, short circuit, overheat, over-current protection. Board will lock and recover when turn it on/off.
Reliability: Environment 25 ℃, at 80% load MTBF more than 16,000 hours
Buck order price 17% discount off for 50pcs.
