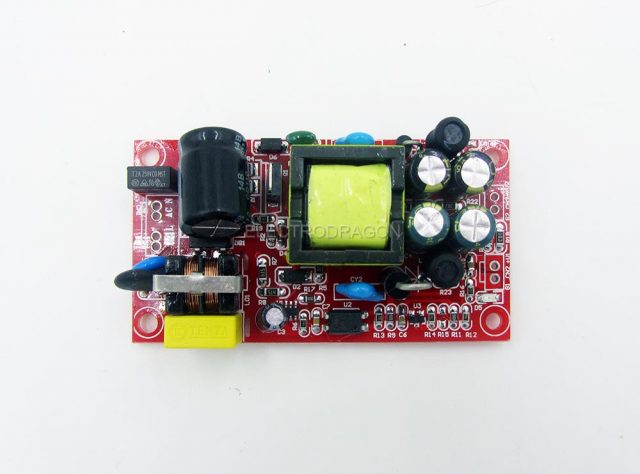

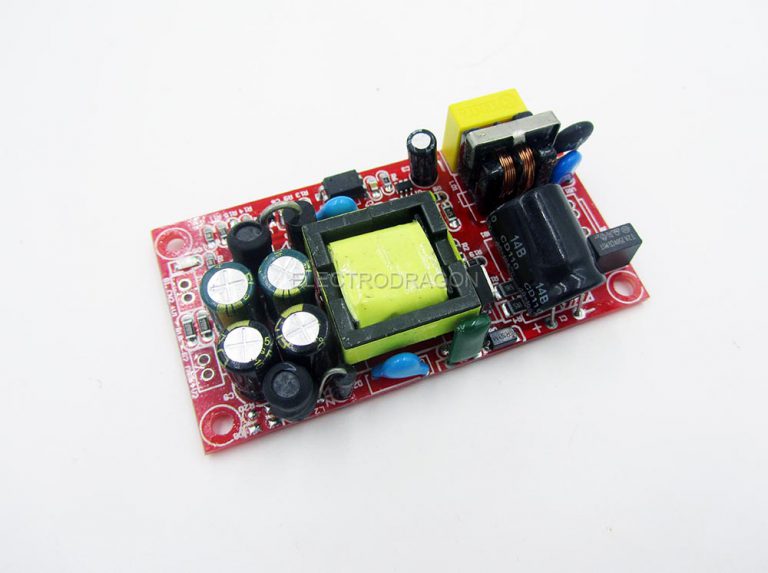

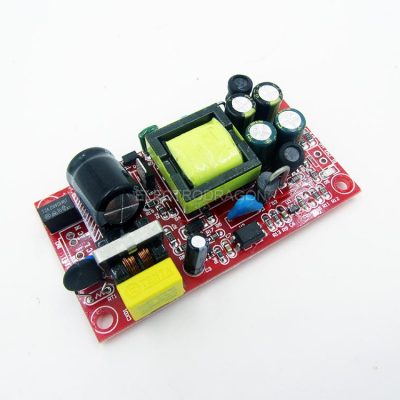

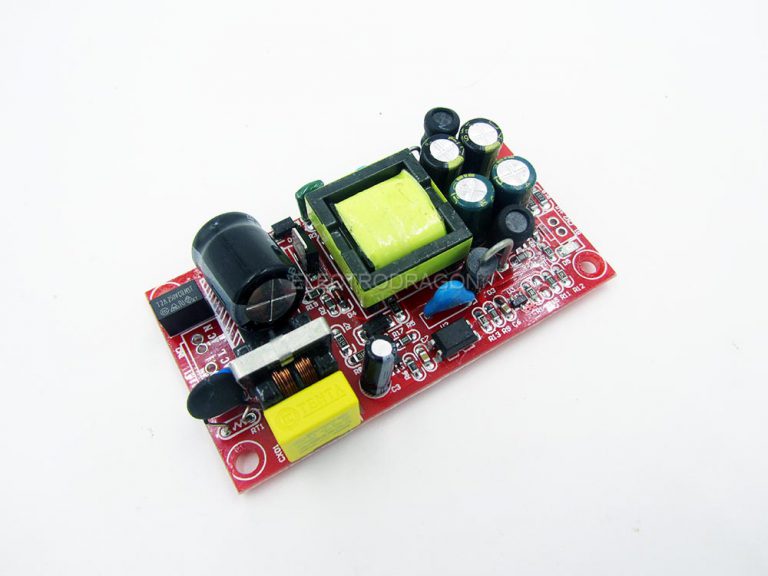

AC-DC Isolated Dual Output Module 12V/1A 5V/1A


SKU: OPM1065 Categories: , Tag:


This power supply is fully isolated industrial internal power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A \ 5V1A dual isolated output voltage, 431 regulated output with EMI filter circuit, with status LED, with installation holes, cost-effective.

Note: This section is dual voltage power supply output is recommended when using two load output voltage while the power to achieve the best design performance, if only one of them to go all the way to select the appropriate category of single output power supply voltage.


  • Input (full load): AC 85-265V
  • Input current (full load): 0.027(AC110V) 0.0136(AC220V)
  • Input inrush current (full load): 20A
  • Output: 12V, 0-1A, 1.2A max, output voltage range 11.80~12.5V, 150mV voltage wave
  • Output: 5V, 0-1A, 1.2A max, output voltage range 4.90~5.1V, 80mV voltage wave
  • DC output power: 17W
  • Efficiency: 84%
  • On/off overload range: 10%
  • Output upward time: 100ms

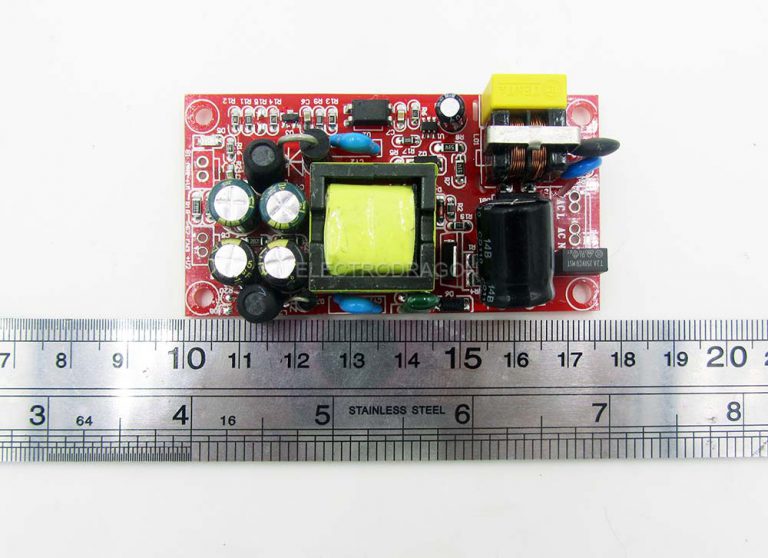

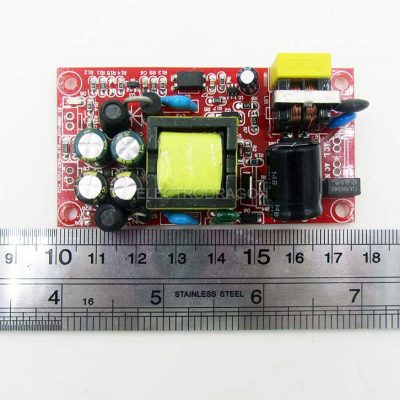

  • Size: 7.5*4.0*1.9(cm)

Protection: overload, short circuit, overheat, over-current protection. Board will lock and recover when turn it on/off.
Reliability: Environment 25 ℃, at 80% load MTBF more than 16,000 hours

Silk print: V1 = 5V, V2=12V


Additional information

Weight 0.05 kg
