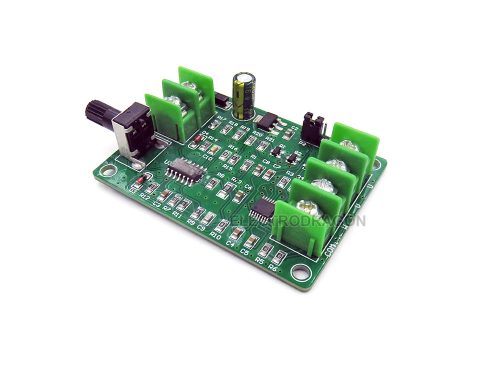

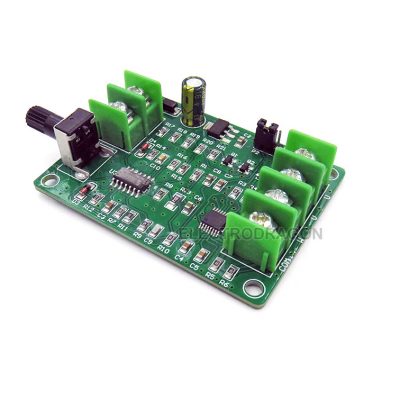

Small BLDC Brushless Motor Drive Board, ESC, 12V 1.2A

Description

Small BLDC Brushless DC Motor Drive Board, target motors:

• Brushless motor for driving hard disk
• Optical drive brushless motors such as micro 3-wire or 4-wire Hall brushless motors

Board features includes:

• Protection:
  • Reverse voltage protection
  • Over current protection
  • Short circuit protection
• Simple wiring, and worry-free use.
• Operation voltage of 7-12V, current up to 1.2A
  • The higher the voltage, the faster the speed
  • Maximum can reach about 10,000 rpm.

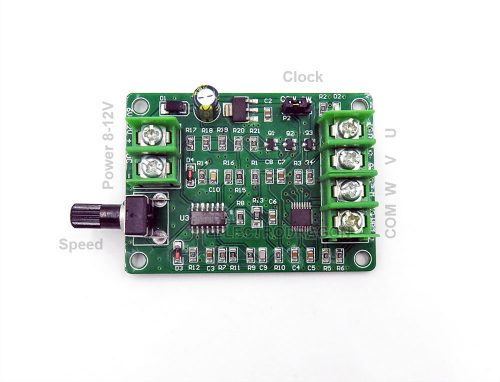

• Tuning rod to control speed between 0%-100%, jumper control directions.
• On board drive chip is DRV11873

No more documentations avaialble for this board.
