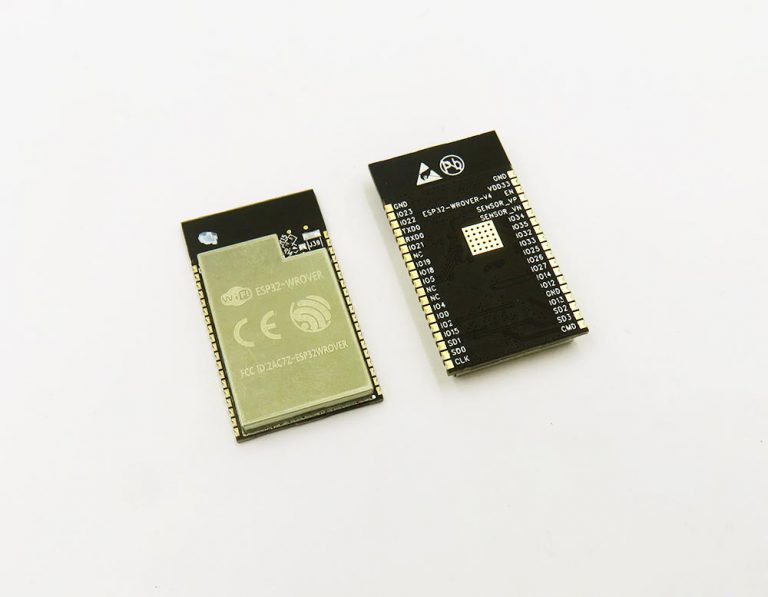

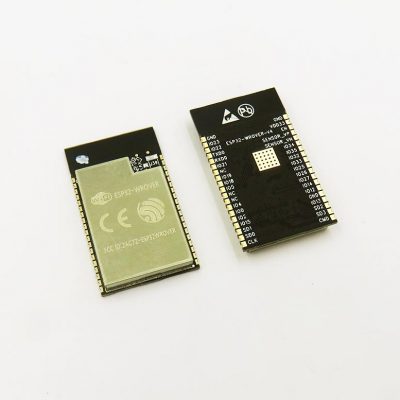

ESP32-Wrover Module, Based on ESP32, V4

Description

This is the ESP32-Wrover module, the following is some information took from the datasheet:

ESP32-WROVER is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

At the core of this module is the ESP32-D0WDQ6 chip*, same as ESP-WROOM-32 module. Compared to ESPWROOM-32, ESP32-WROVER has an additional SPI Pseudo static RAM (PSRAM) of 32 Mbits. As such, ESP32-WROVER features both 4 MB external SPI flash and 4 MB external PSRAM.

• The ESP32-WROVER module has a PCB antenna
• The ESP32-WROVER-I uses an IPEX antenna.
• Espressif datasheet for ESP32-Wrover on this link, or from their documents center page.
• ESP32-Wrover-kit avaialble here.

All avaialble ESP32 ICs, Modules (WROOM-32, ESP32-WROVER, etc), Development Board(ESP32-devkitc, esp32-wrover-kit, etc) see on this page.

Custom Flash:

• RVB: ESP-WROVER, PCB-ANT, 4MB (default, = 32Mbit)
• RVB: ESP-WROVER, PCB-ANT, 8MB
• RVB: ESP-WROVER, PCB-ANT, 16MB
• RVI: ESP-WROVER-I, IPEX-ANT, 4MB (default, = 32Mbit)
• RVI: ESP-WROVER-I, IPEX-ANT, 8MB
• RVI: ESP-WROVER-I, IPEX-ANT, 16MB

Order Note:

For volume pricing (a reel), please contact espressif directly sales@espressif.com, we don’t have any discount for this item.
