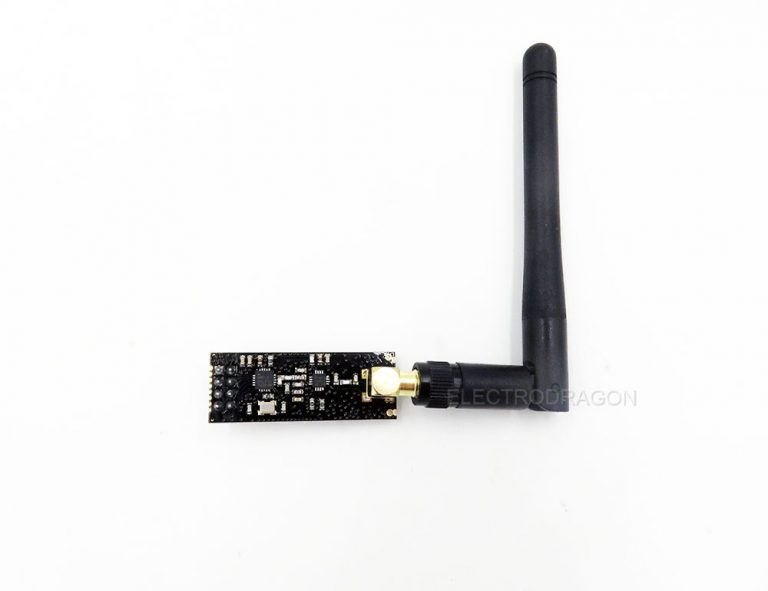

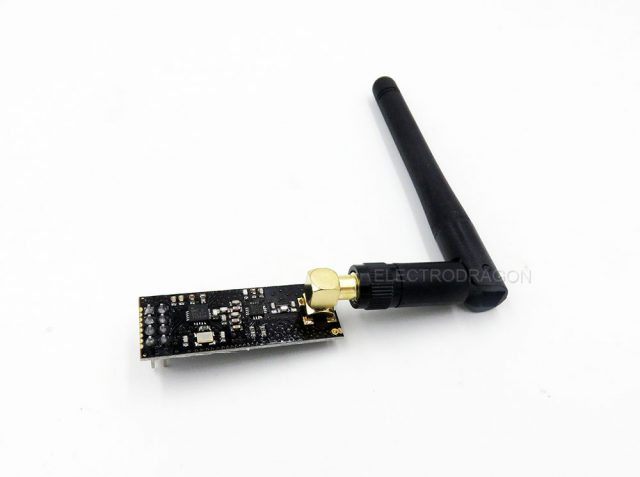

NRF24L01L Long Range Wireless Module R2 (1.1KM, PA+SMA) 02
NRF24L01L Long Range Wireless Module R2 (1.1KM, PA+SMA) 01
NRF24L01L Long Range Wireless Module R2 (1.1KM, PA+SMA) 02
NRF24L01L Long Range Wireless Module R2 (1.1KM, PA+SMA) 03

NRF24L01L Long Range Wireless Module R2, 1.1KM, PA LNA

Arduino Radio PTH Board
Atmega328P Arduino Plus Nrf24l01+ Board, Nrf24Duino R1.6
5.00 out of 5
4 customer reviews|Add a review

$2.70

SKU: NWL1050 Category: Tags: , , , ,
View cart

Description

R2 version is 70% price off now.

Nrf24l01L wireless module, use NRF24l01 IC from Nordic, work at 2.4Ghz worldwild open ISM band, working data speed up to 2 Mbps, 125 channel can reach multiple channel and jumping channel needs, operation voltage 3.3-3.6V, transmit power up to 20 dBm, then sensitivity can reach -86dbm at 2 Mps high speed.

This module is designed for long distance as well as high speed transferring, pins and interface are fully compatible with normal NRF24L01+ module, no need extra control pins. (two extra pins without silk print can connect to GND)

Compact size, easy to use, simply extend the communication distance.

Features of Module:

  • Voltage 3-3.6v (recommended 3.3v) V
  • +20 DBm maximum output power
  • Emission mode operating current (peak) 115 MA
  • Receive mode operating current (peak) 45 MA
  • Power-down mode current 4.2 UA
  • Operating temperature -20 ° C
  • Receiving the Spirit of 2Mbps mode -92 dBm
  • Receiving the Spirit of 1Mbps mode -95 dBm
  • Receiving the Spirit of 250Kbps mode -104 dBm
  • Support PA/LNA
    • PA gain of 20 dB
    • LNA gain of 10 dB
  • Coefficient of 2.6 dB LNA voice
  • Antenna gain (peak) 2 Dbi
  • 2MB rates (Open area) distance 520 m

Application:

  • Wireless remote control, somatosensory equipment
  • Active RFID, NFC
  • Smart grid, smart home
  • Wireless Audio

Feature of NRF24L01:

  • 2.4Ghz worldwide free open ISM band
  • High working speed up to 2Mbps, high efficient GFSK modulation, can transfer audio or video.
  • 125 channels for multiple communication or jumping channels communication.
  • Embedded CRC error-check and point to mutiple point communication control
  • operation voltage at 3.0-3.6V (3V3)
  • External 2.4Ghz antenna, compact size 18mm * 30mm
  • Module can set address by software, only output data when device receive right address, can directly connect to any MCU, and easy to programmer.
  • 2.54 pins space, compatible with normal module interface, easy to replace.
  • 51, AVR reference code is available, simply copy and modify
  • Transfer distance can reach 1000 meters @ 250 Kbps (normally can reach 0.8KM)

Package:

  • Including antenna (use other antenna may not able to have the max transfer distance)

Documentation on this page, check NRF24L01L for specifiation of this one.

Additional information

Weight 0.025 kg

4 reviews for NRF24L01L Long Range Wireless Module R2, 1.1KM, PA LNA

  1. 5 out of 5

    jeroenvp –

    Cheap but reliable solution for wireless transmissions. Easy to use with arduino boards.

  2. 5 out of 5

    Johannes –

    I got the receiver hooked up in the house and the sender is in the garden with this module. 30m plus a sturdy wall – no problem.

  3. 5 out of 5

    narioinc –

    Awesome long range radio. works almost perfectly across thick walls with no problems or data loss. another great product from electrodragon.

  4. 5 out of 5

    Gloria (verified owner) –

    It works with arduino using RF24 library without problems
