NRF24 Mini SMD Wireless Module (NRF24L01 Compatible)


SKU: NWL1010 Category: Tags: , , ,

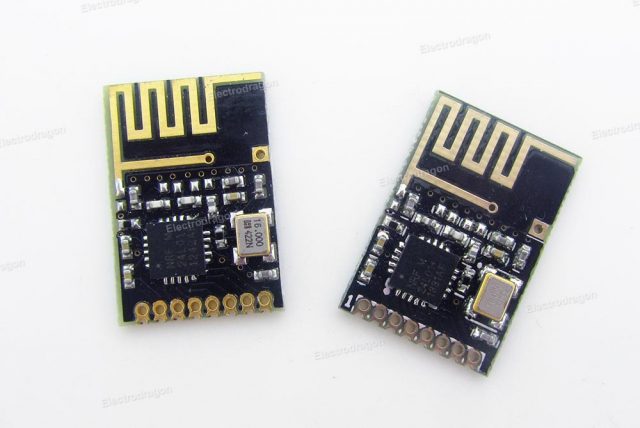

The mini size NRF24 (TW) wireless board, 12*18mm, orignal nordic NRF24L01 compatible, all the same way of use, the only two differences with original one are: NRF24 can provide higher transmission power up to 7dbm (0dbm original) but same power computation on same transmission power level, also this one is much cheaper!


  • Voltage: 1.9-3.6V
  • Sensitivity: 2Mbps – -83dB, 1Mbps – 87dB, 250kbps – -96dB.
  • Receiving current: 2Mbps – 15mA, 1Mbps – 14.5mA, 250kbps – 14mA
  • Standby current: 15uA
  • Power off current: 700nA
  • Operation temperature: -20 ~ +55 degree.
  • On board PCB antenna, transmission distance reach 240M in open area, but 2.4G frequency is not good to pass through walls, also interfere by 2.4G wifi signal significantly.


Additional information

Weight 0.01 kg
