Arduino 12864LCD Interactive Shield
$15.00
- Description
- Additional information
- Reviews (1)
- Enquiry2
Description

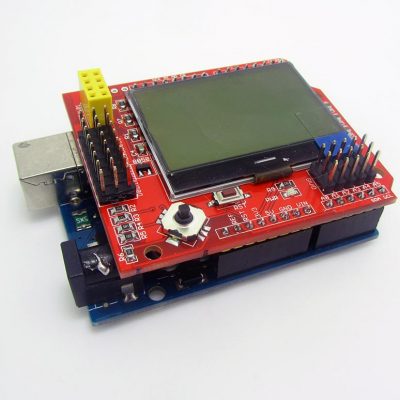

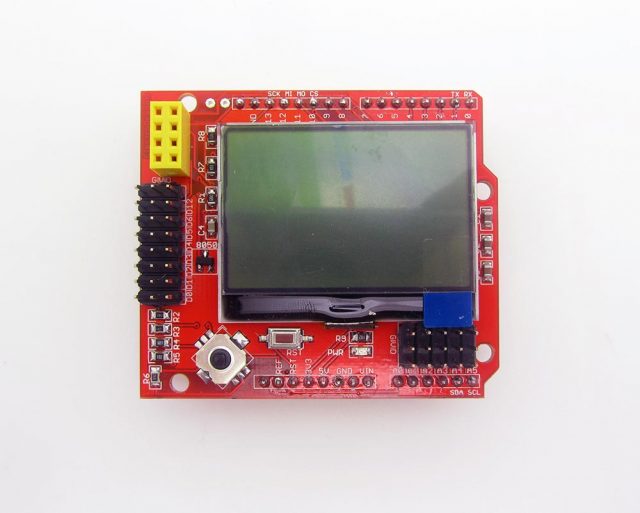

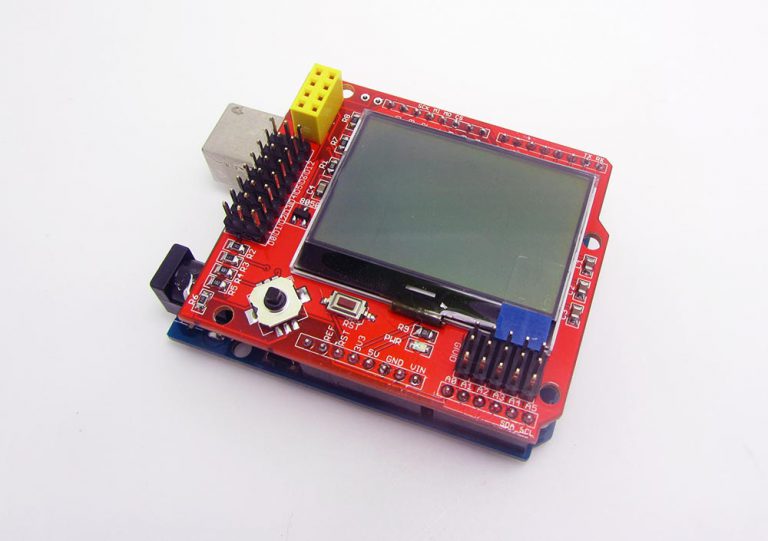

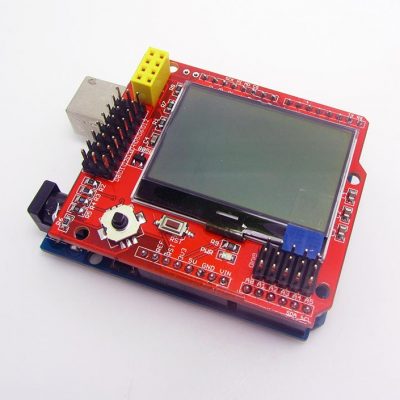

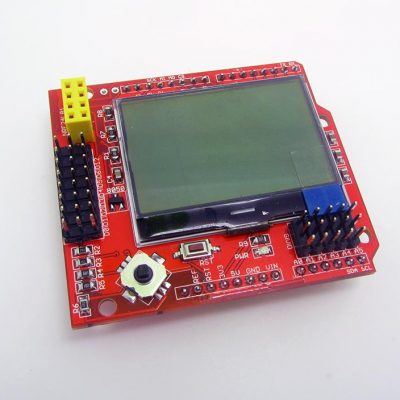

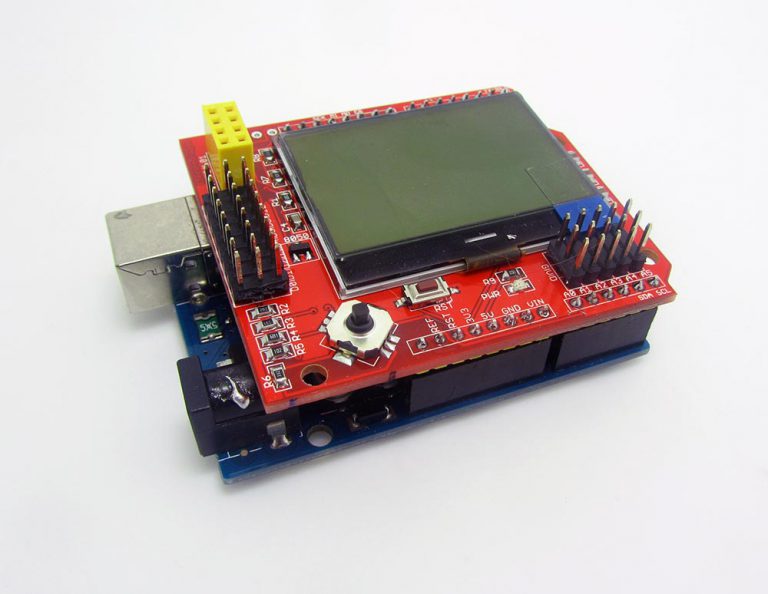

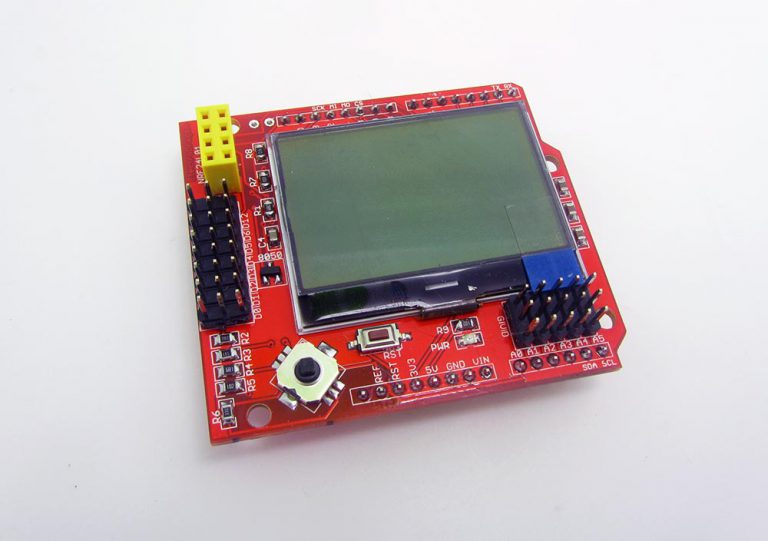

This shield includes a mini size 12864 dot LCD, a 5-direction control key joystick and NRF24L01 wireless port, extra pins are lead out for prototyping purpose.
- Nice displaying quality, LCD is supported by arduino library. (Same LCD PCB standalone version here.)
- Joystick generate analog value on pin A0, read different value to get its input.
- Back light can be controlled to reach low power saving purpose, arduino pin D7.
- Plug in to use wireless function, except SPI and power pins, rest pins value also print on the board. Yellow socket.
Additional information
| Weight | 0.04 kg |
|---|
