AVR128DB64 Mini Develpment Board AVR128

AVR128DB64 Mini Develpment Board AVR128

$7.00

SKU: DAR1064 Category: Tags: , , ,

Description

For full scription about AVR128DB family and AVR12DB64 chip’s description please see here.

Board Features:

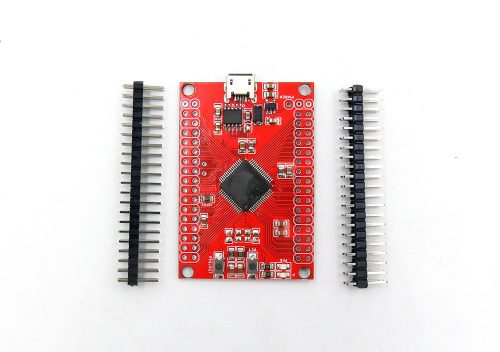

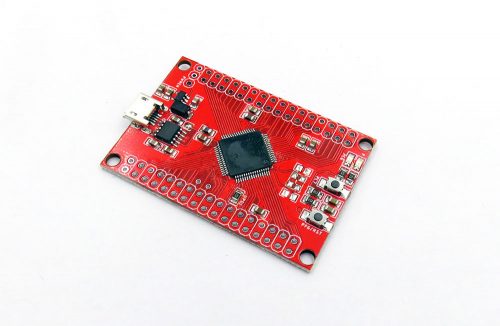

  • On board avr128db64 chips, lead out all pins.
  • Reserved high speed and 32K low speed crystal places.
  • Programmable buttons PC7, LED PC6, match to official example.
  • On board reset button PF6 and power LED.
  • USB-TTL bridge to UART3 PB0/PB1 or UART3 PE0/PE1 via jumper
  • Selectable system power supply 5V or 3.3V via jumper
  • On power LDO support up to 18Vin, 300ma Iout, and 0.7 uA low working current.
  • Board size 36 x 52.5 mm.
  • Reserved Reset to DTR pin for further arduino support.

A quick start guide video please see here. Easy to use with Atmel-ICE or other UPDI programming methods.

Additional information

Weight 0.015 kg
