DAPLink CMSIS-DAP Debugger, For ARM Cortex M, LPC-LINK

$7.30

Description

  • Based on official NXP DAPLink design, chip use LPC11U35FHI33

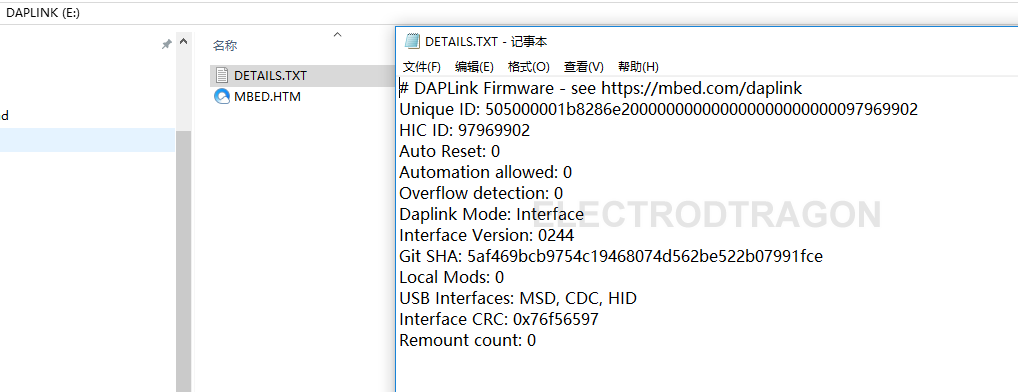

Firmware from DAPLINK github.
  • Support multiple way of programming:
    • MSC – drag-n-drop programming flash memory
      • This need configure firmware for different target and flash again.
      • For example, can use to program mbed microbit.
      • Only support chips which support back to this function.
    • CDC – virtual com port for log, trace and terminal emulation
    • HID – CMSIS-DAP compliant debug channel.
    • WEBUSB HID – CMSIS-DAP compliant debug channel (not test this, may not working)
  • Capable to program all ARM Cortex M core chips.
Hardware:
  • Lead out all the pins from chip, can use not only as a programmer, but also a development board.
  • Reset button
  • Three status LED, 0.11, 0.21, 0.22
Notice:
  • You can use one board to flash another one to LPC-LINK, but you will always need to keep at least one programmer to do so.

Documentation: schematic, firmware updating guide please see here.  More demo code can be found in customer bitbucket.

Additional information

Weight 0.015 kg
