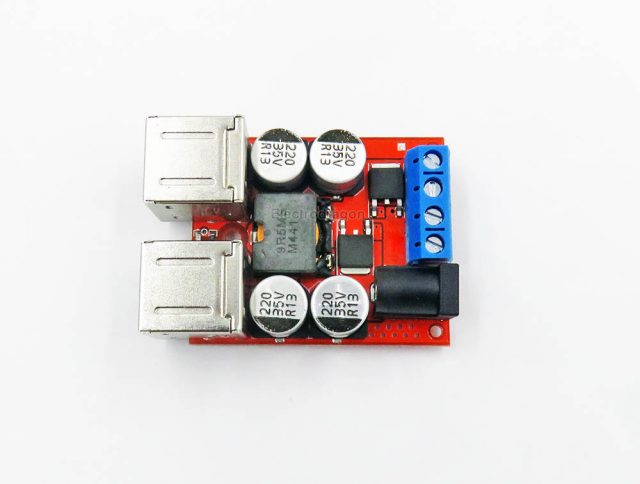

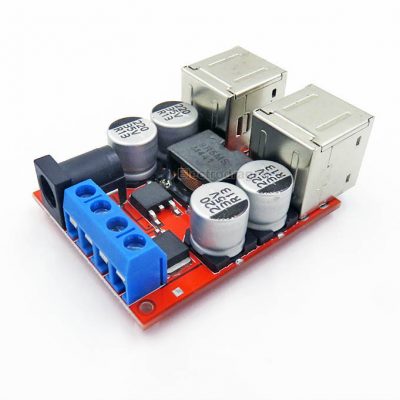

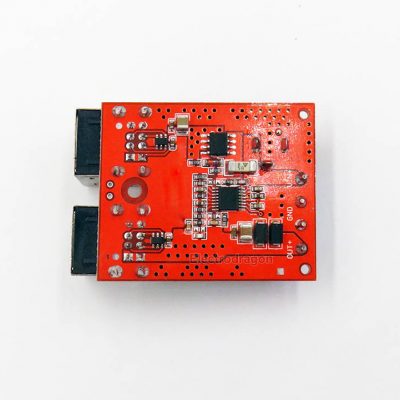

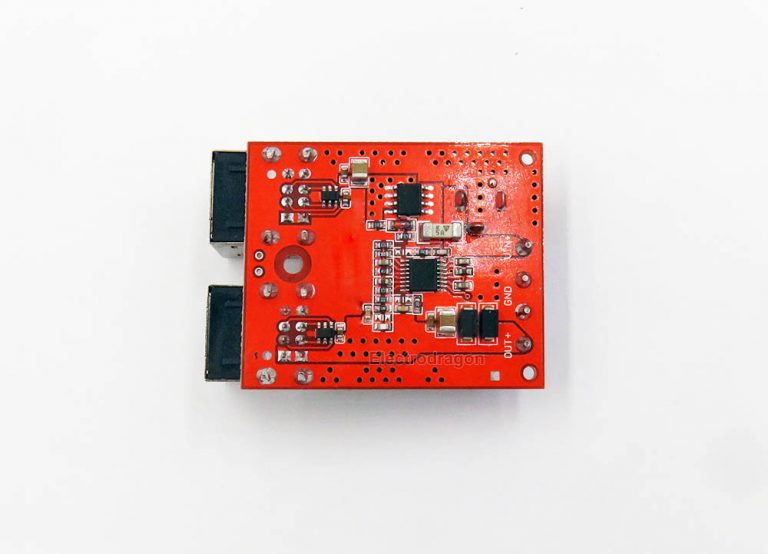

DC-DC Buck 4 USB Charger Module 8A

Description

• The 4-channel independent dedicated charging management IC can effectively support the maximum current charging of various mobile phones, and the charging speed is fast, safe and reliable.
• The charging recognition IC is compatible with Apple’s full range of products (backside recognize IC), and most mobile phones can achieve the fastest charging speed.
• Support 4 channels of USB for 2A current charging at the same time, the current is large and the charging is fast, and the total output current can reach 8A.
• The input use MOS tube to protect reserved wrong connection, and maximize conversion efficiency and reduce loss.
• The output is protected against overvoltage to protect the phone.
• The 8-35V ultra-wide input voltage and 12V 24V are perfectly supported.
• The synchronous rectification scheme can effectively reduce the heat generation and improve the efficiency, and the efficiency can reach up to 96%.
• The industry’s advanced flat line high current inductance, large current and small heat generation, high conversion efficiency.
• 4 high-quality chip capacitors, and then increase the capacity of MLCC capacitors, the output ripple is lower, and the interference is smaller.
• High-quality double-layer gold-plated USB port, the life is twice that of ordinary USB.
• The default delivery is about 5.2V output voltage.
• Support Apple and Samsung fast charge protocol.

Specifications:

• Input voltage: DC 8-35V
• Input current: 5.5A
• Output voltage: 5.2V
• Output current: total maximum 8A, current adaptive, mobile phone single port charging up to 2A.
• Dynamic response speed: 300us (load flow change 5%)
• Conversion efficiency: 95% (12V to 5.2V3.5A measured, efficiency is related to differential pressure and load size.)
• Load regulation rate: 0.2-0.3% (10%-50% load 12V input measured)
• Ripple & Noise: 120mVP-P (20MHz bandwidth 12V to 5.2V3A measured)
• Switching frequency: 100KHz
• No-load current: 18mA (measured by 12V car 5V)
• Wiring method: IN input OUT input terminal block DC seat
• Fixed method: M3 * 1 M2 * 2
• Net weight: about 36 grams

Supporting devices: mobile phones, digital cameras, tablets, navigators, driving recorders and other devices that require USB power. It can charge 4 mobile phones at the same time, and the total current of 4 channels is 8A.

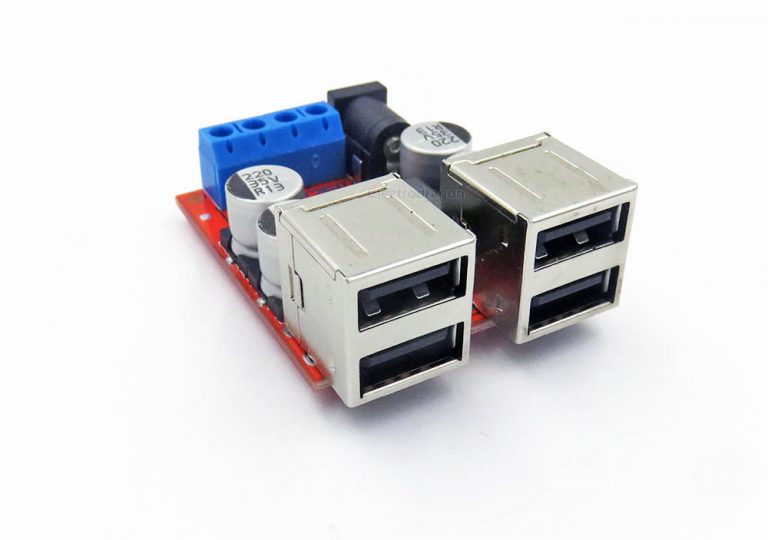

A variety of input and output methods, support for cable terminal input, DC jack input, output support 4 * USB output, terminal output 5V.

Extra Documentation please see on this page.
