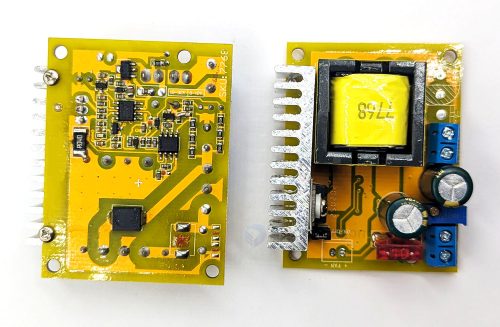

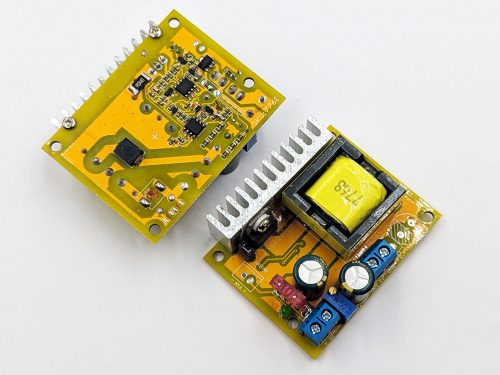

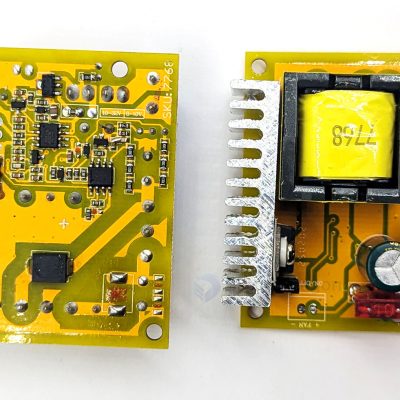

DCDC Booster Step-Up High Voltage Generator Module ADJ. 45~390V

Description

This brand-new high-voltage boost module offers an ultra-wide voltage range of 45V to 390V (+/- 780V), dual input current limiting protection, and output voltage regulation.

It’s suitable for capacitor charging, hunting, rodent control, and Nixie tube power supplies.

Input

• 2. 10-32V input (for wide input voltage range applications)
• Input current: 5A (max)
• Quiescent operating current: 15mA (When increasing from 12V to 50V, the quiescent current increases with higher output voltages)

Output

• Output voltage:  Continuously adjustable from 45-390V.
• Output Current: 0.2A (depends on the input-output voltage differential; higher output voltage reduces output current)
• Output Power: 40W (70W peak)
• Operating Temperature: -40°C to +85°C (please increase heat dissipation if ambient temperature is too high)
• Operating Frequency: 75kHz
• Conversion Efficiency: Up to 88% (efficiency depends on input-output voltage, current, and voltage differential)

More information please see on this page.
