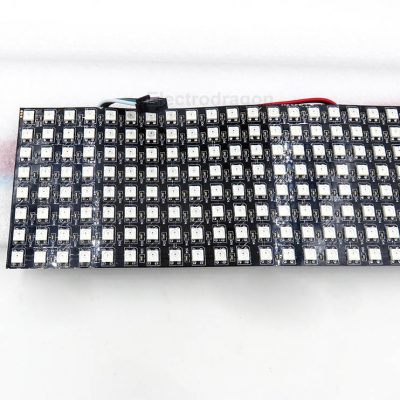

Flexible WS2812 RGB Full Color Dot Matrix Display FPCB

RGB LED Matrix Display Panel (Warranty Warn Note Inside) [Type]
4 Digits Segment Display Header Clock Meter 0.56”
0 out of 5
( There are no reviews yet. )

$20.30

SKU: N/A Category: Tags: , , ,
Clear

Description

  • Product model: WS2812-pixel screen

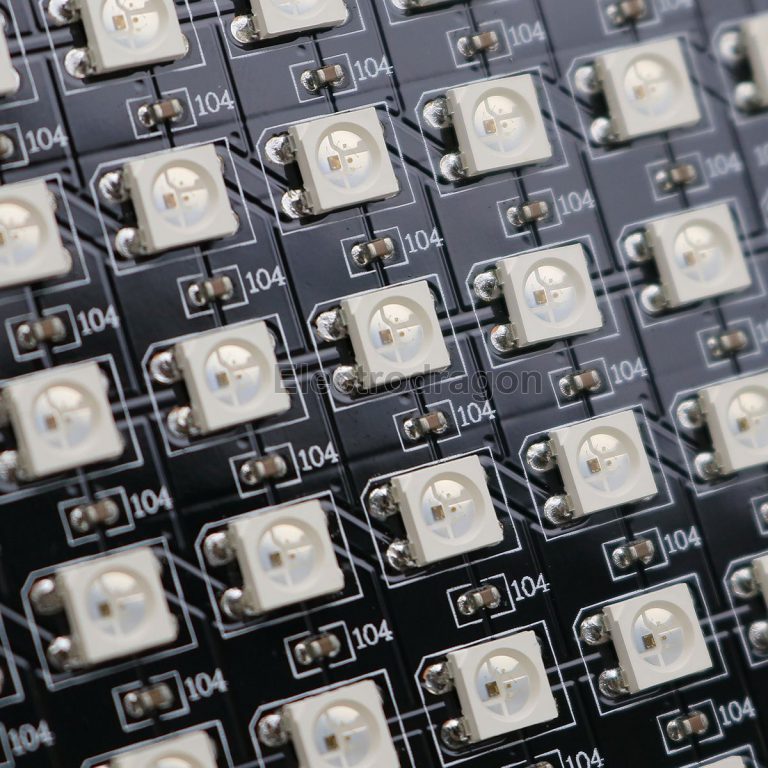

  • Light source: SMD 5050 RGB;
  • Sheet: soft copper plate;
  • IC model number: WS2811 or WS2812
  • Gray level: 256 levels
  • Illumination angle: 180°;
  • Luminous color: can be adjusted by the controller, white, red, yellow, blue, green, etc.;
  • Standard operating voltage: DC 5V;
  • Power:
    • 19.2W (8*8 pixel screen)
    • 76.8W (8*32 16*16 pixel screen)
  • Waterproof rating: NOT waterproof,
  • FPCB board size:
    • 8CM*32CM*3 mm, LED pitch 1mm
  • FPCB color: black

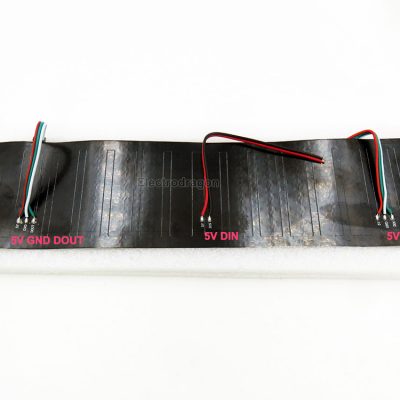

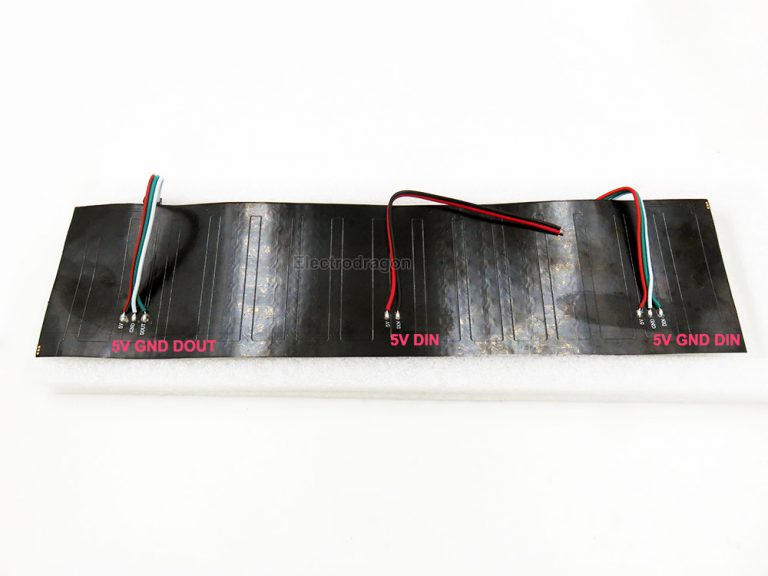

  • Notice the LED connection from the top left where have three pads, to down, then to right and up, and again.

Documentation please see on this page.
