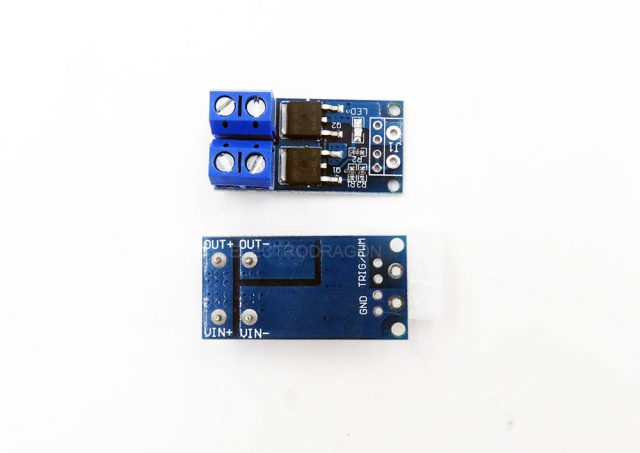

High Power MOSFET Drive Module, PWM Control

Description

• Using brand new double MOS AOD4184A parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment;
• Wide voltage, the perfect support for PWM;
• Easy control of power equipment.

Parameters:

• Operating Voltage: DC 5V – 36V;
• Trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
• Output capacity: DC DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
• Application: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness.
• Life: Unlimited switch; Operating temperature: -40-85 ℃; size: 3.4 * 1.7 * 1.2cm

Documentatioin can refer to this page.
