IR Contactless Human Temperature Sensor MLX90614 [Version]




Sensing distance of each version:

  • MLX90614-BAA Breakout Board: 2mm
  • MLX90614-BCC Breakout Board: 10 mm
  • MLX90614-DCI Breakout Board: 1 M

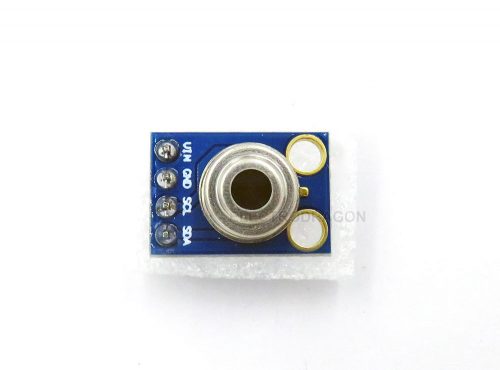

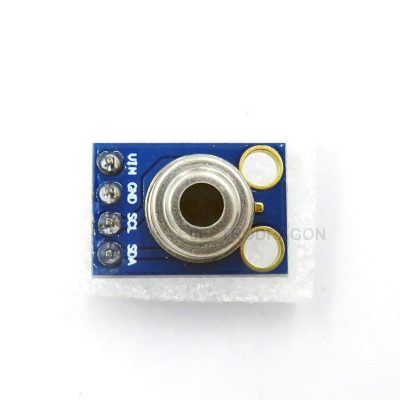

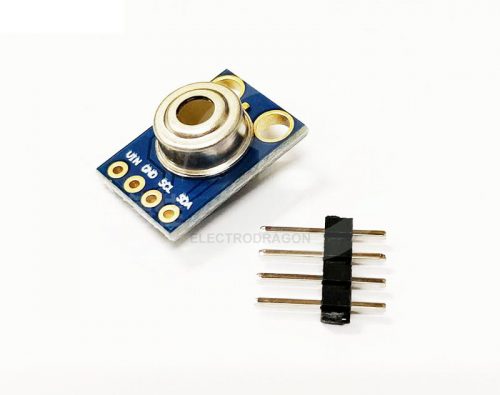

Board Features:

  • Directly IIC interface communication output, on board 3V3 LDO

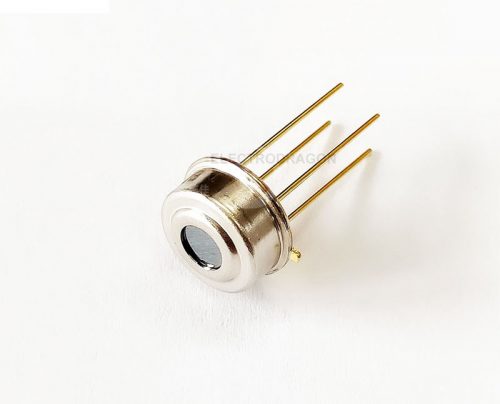

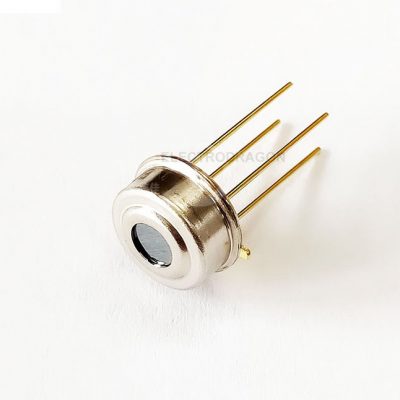

MLX90614 Chip Features:

  • The MLX90614 is an Infra Red thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same TO-46 can package.
  • Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved.
  • The thermometer comes factory calibrated with the digital SMBus compatible interface enabled. Readout resolution is 0.02°C.
  • It has a huge number of applications including body temperature measurment and movement detection.
  • Small size, low cost
  • Easy to integrate
  • SMBus compatible digital interface
  • Customizable PWM output for continuous reading
  • High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
  • Single and dual zone versions
  • Simple adaptation for 8 to 16V applications
  • Power saving mode
  • Different package options for applications and measurements versatility
  • Automotive grade

For MLX90614-BCC:

  • -40 … + 125 ° C for ambient temperature
  • -70 … + 380 ° C for measuring the target temperature
  • Measuring distance: close 5-10cm
  • Dual zone version.

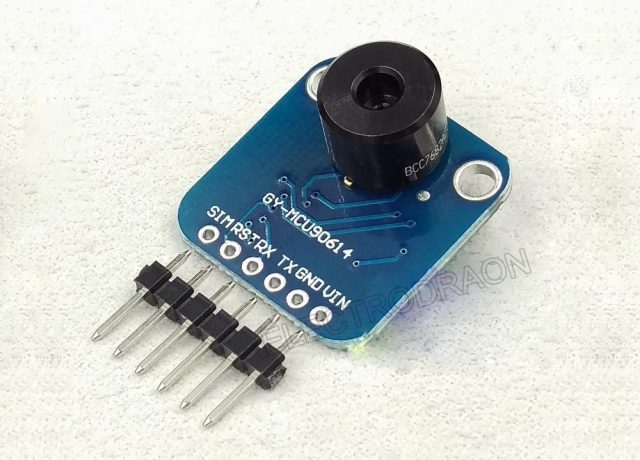

R1 Breakout Board Features:

  • Direct serial output temperature data, simplified reading method.
  • Power supply: 3-5v
  • Current: 5ma
  • The baud rate is 9600 or 115200
  • Size: 18mm * 16.5mm * 5mm (L * W * H)
  • Mounting hole 3mm, installation hole spacing 11.5mm, row needle spacing 2.54mm

Documentation and how to read data, see on this page.

Additional information

Weight N/A
Main Chip

MLX90614-BAA, MLX90614-BCC, MLX90614-DCI
