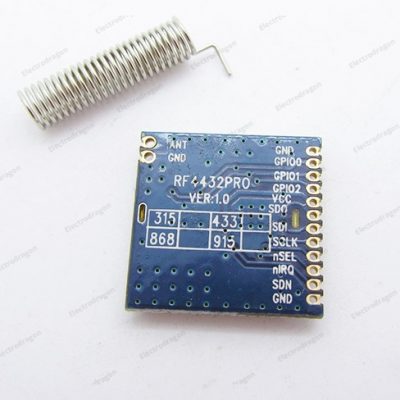

SI4432 Wireless Transceiver (433M,1.5KM Range)
$5.50
- Description
- Additional information
- Reviews (2)
- Product Enquiry
Description
Features:
- Shield-Protected

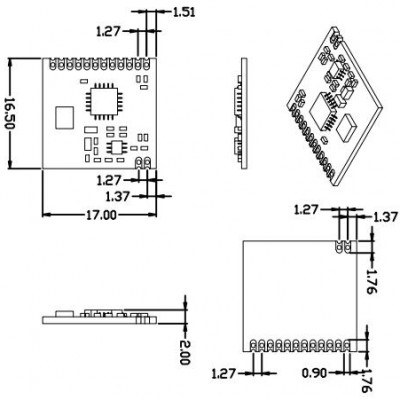

- Ultra-thin ultra-small (16.5 × 17mm)
- Good harmonics too easy to FCC / CE certification
- The penetration ability (measured through 8 floors)
- Using the latest version of the U.S. SI4432 IC, stable performance
Specification:
- Frequency range: 433.92M
- Sensitivity up to-121dBm
- Maximum output power: 20dBm
- Ddata transfer rate:0.123-256kbps
- FSK, GFSK and OOK modulation
- power supply: 1.8-3.6 V
- Ultra-low-consumption shutdown mode
- Digital received signal strength indication (RSSI)
- Wake time
- Automatic matching and two-way antenna switch control
- Configurable packet structure
- Preamble detection
- 64-byte send and receive data register (FIFO)
- Low power detection
- 8-bit ADC and temperature sensor
- Operating temperature range: -20 ~ +60 ° C
- Integrated voltage regulator
- Frequency hopping
- Power-on reset function
- Built-in lens adjustment
Application:
- Remote Control; Remote meter reading; Home security alarm and remote keyless entry; Industrial Control; Telemetry Home Automation; Personal data records; Toy Control; Sensor networks; Tire pressure monitoring; Health Monitoring; Wireless PC peripherals; Tag readers
Additional information
| Weight | 0.005 kg |
|---|
Docedison (verified owner) –
This one is the Good One. Shielded for unwanted emissions, easy to mount an SMC connector and 433 MHz antenns’a @ $2.00 – $4.00 make the best possible use of the +20 DBM (100 mW of power). With the antenns’a away from city noise and mounted about 5 feet in the air vertically the radios ‘should’ be capable of 2 km or more I’ve measured 2.3 km (about 1.5 Mi).
docedison
Ton Visch (verified owner) –
Happy with your product
I am Using two SI4432 at 3.3V with DIY 5V Arduino and 74HC4050 interface
Software : RadioHead library
#include
#include
#include
#include // I2C library
driver.setFrequency(434.0, 0.05);
driver.setTxPower(RH_RF22_TXPOW_20DBM ); // sender +20dbm
driver.setModemConfig(RH_RF22::GFSK_Rb2_4Fd36); ///< GFSK, No Manchester, Rb = 2.4kbs, Fd = 36kHz
antenne DIY dipol 2x166mm at 1.5m height
sending data packets receiving OK
measured range 3 km nearly open field -94dBm
using 140mA for 1 Hour from Lipo 7.3V battery
