Arduino TF SD Micro SD Stackable Shield

$5.80

SKU: DAS1033 Category: Tags: , , ,

Description

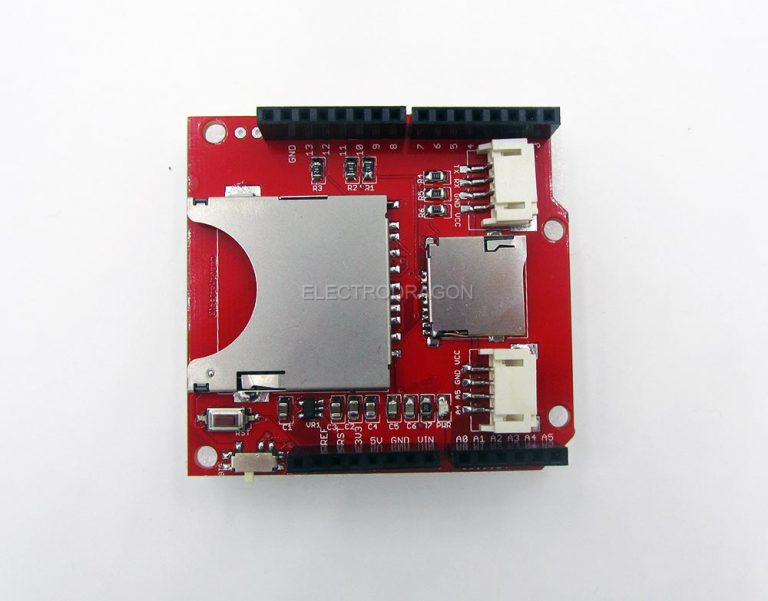

Stackable SD Card shield is a stackable design Arduino SD / TF card expansion boards. It supports directly into the Arduino board expansion SD / TF read and write functions.

  • Only Support TF/SD cards which support ISP modes.
  • Only use the arduino SPI interface, may conflict with other shields which will also use the SPI.
  • Extra Uart and IIC interface, four pins PH2.0 connectors
  • Can switch between large CD card read slot or small miscro SD card read slot.

Package includes main PCB board, not soldered arduino special pin headers, 2pcs PH2.0 connecting cables.

Usage:

  • For default arduino official SD library, only need to change CS pin to 10. NOT default D4 in sketch.
  • Notice switch to “big” or “Micro” for either SD card or microSD card.

Documentation:

  • Supported by default Arduino IDE SD library.
  • See the manual documents, library available on this page.

Additional information

Weight 0.04 kg
