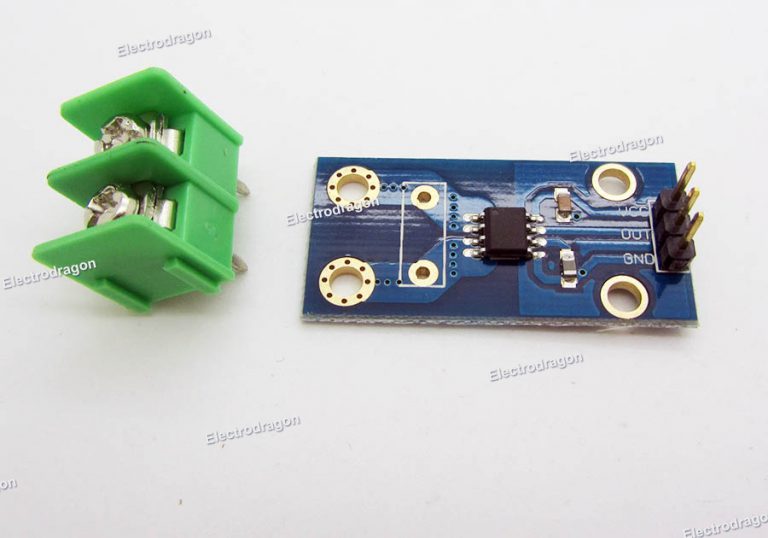

ACS712 Current Sensor 02

ACS712 Current Sensor [Current]

0.28” 2-wire Voltmeter Header Voltage Meter ~40V
YHDC Non-Invasive AC Current Transformer Sensor [Current]
5.00 out of 5
3 customer reviews|Add a review

$2.50 – $2.70

SKU: SVC1000 Category: Tags: , ,
Clear

Description

  • Use ACS712 Sensor: ACS712ELCTR-05B and ACS712ELCTR-20A, brand new.
  • Power supply at 5V, when no current the output analog value at middle voltage point which is 2.5V
  • Can measuring + and – 5A current, no matter DC or AC, but AC is more complicate, you should concern the frequency.
  • Resolution for 5A is 185mV/A, and for 20A is 100mV/A
  • Including 300V/30A Cable terminal, not ye solder, so in this way you can either connect the cable directly to the cable terminal or solder directly on the PCB holes (behind the terminal).

Documentation:

Additional information

Weight N/A
Power, Current, Voltage

,

3 reviews for ACS712 Current Sensor [Current]

  1. 5 out of 5

    geraldhasmail (verified owner) –

    Works perfectly, extremely easy to use.

  2. 5 out of 5

    thiagoas (verified owner) –

    Nice module, very useful in power supplies.

  3. 5 out of 5

    19mato (verified owner) –

    usefull for project on batteries
