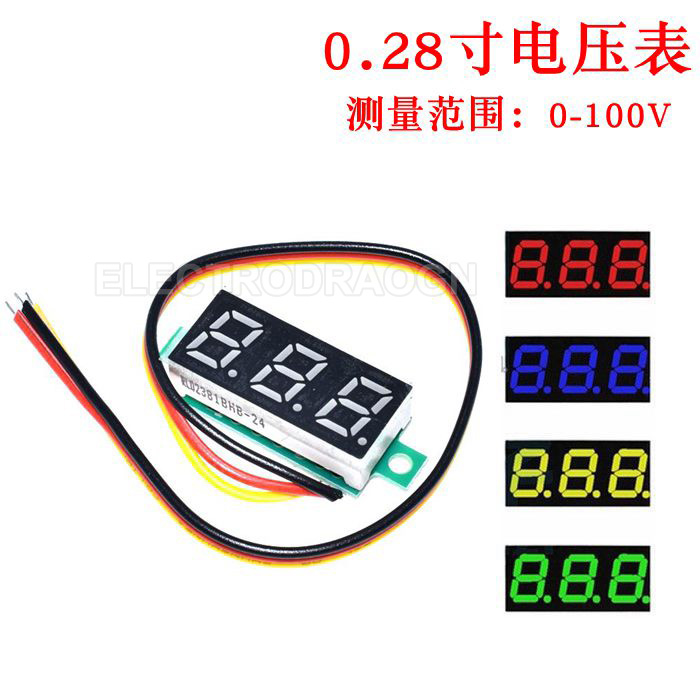

0.28” 3-wire Voltmeter Header Voltage Meter R2 0-100V

0.28” 3-wire Voltmeter Header Voltage Meter R2 0-100V

$1.90

SKU: SVC1017 Category: Tags: , ,

Description

The voltmeter with 0.28 inches of digital ultra-small size tube has an area similar to a coin, using fully automated the SMD process manufacturing, process skills; voltage display accurate, better than any normal voltmeter.

Can be used for car / battery car / motorcycle can be used for a variety of voltage measurement purposes. Convenient access lines, used to monitor the battery voltage, grasp the battery state, and can also be used for other voltage measuring purposes.

Features
  • Dimensions: 30mm * 12mm * 9mm (L * W * H)
  • Display: three 0.28 LED digital tube red
  • Range:
    • 0-40V two wires
    • 0-100V three wires
  • Refresh rate: about 500ms
  • Measurement accuracy:  0.3%
  • Operating temperature: -10 ℃ -65 ℃
  • Has protection of wrong reversed power.
Upgradation:
  • Change to three wires version

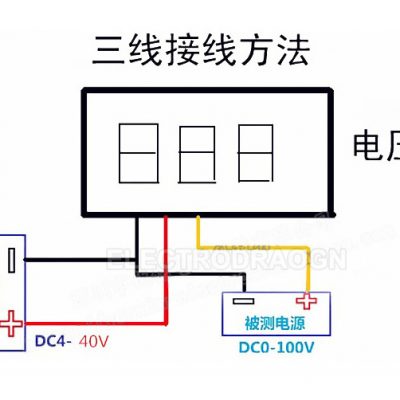

  • Three wires 0-100V :
    • power supply by black- & red+ wires
    • sensing target black-  & yellow+ wires.

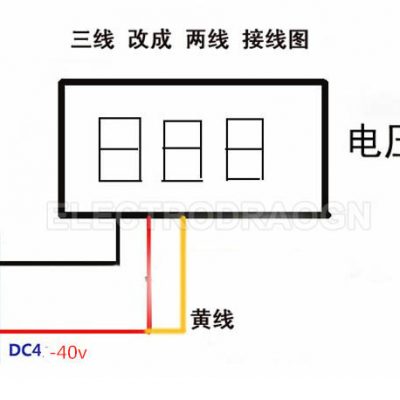

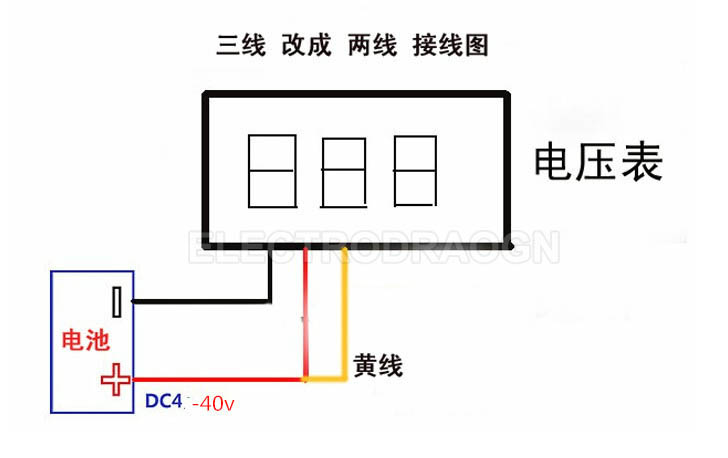

  • Two wires -0-40V:  power and measure from same source
    • black to ground
    • red and yellow to postive power
Documentation:

Additional information

Weight 0.007 kg

15 reviews for 0.28” 3-wire Voltmeter Header Voltage Meter R2 0-100V

  1. 4 out of 5

    Jacques (verified owner)

    I tested this small Volmeter with respect to my full scale one.
    It was accurate and very easy to use.
    I intend to put it on a DIY power supply from an ATX PS, to be used as a lab PS.

  2. 5 out of 5

    remymorra (verified owner)

    full working , in full scale range 😀

  3. 4 out of 5

    medvonok (verified owner)

    It’s small, efficient and easy to watch. Pay attention to wires that are more rigid and can peel off.

  4. 5 out of 5

    reedv (verified owner)

    This little volt meter is great! It’s small, easy to connect, accurate, and very inexpensive. I have several and put them anywhere I need to know the voltage. This is a fine little sensor.

  5. 5 out of 5

    Sandman333 (verified owner)

    I add these to most of my projects, it’s great to know at a glance how well a battery or power supply is doing.

  6. 5 out of 5

    schnetzi (verified owner)

    Very cheap and works great 🙂

  7. 5 out of 5

    thiagoas (verified owner)

    Great product, very precise and small design!

  8. 5 out of 5

    Gloria (verified owner)

    Small and usefull volmeter

  9. 5 out of 5

    snoonan (verified owner)

    Extremely useful for prototyping and in-circuit voltage monitoring and cheap enough to leave in. Using some for lipo battery voltage indicators.

  10. 5 out of 5

    thiagoas (verified owner)

    Very tine and useful!

  11. 5 out of 5

    Jacques (verified owner)

    Works fine, but easy to blow.

  12. 5 out of 5

    diazfjg (verified owner)

    Just great!!!

  13. 5 out of 5

    Delia (verified owner)

    Works fine

  14. 5 out of 5

    muunokhoi (verified owner)

    Works great, agrees with the meter on my variable DC supply.

  15. 5 out of 5

    vestale (verified owner)

    Works fine and it has a good price.
