OLED RTC EEPROM MISC Pack Board IIC Utility

$3.70

SKU: MOT1027 Categories: , Tags: , , , , , , ,

Description

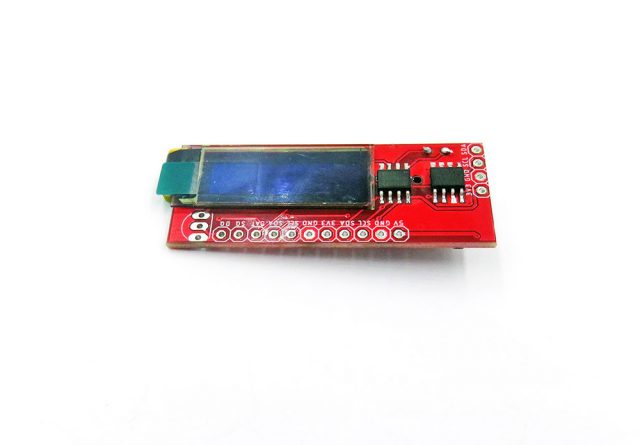

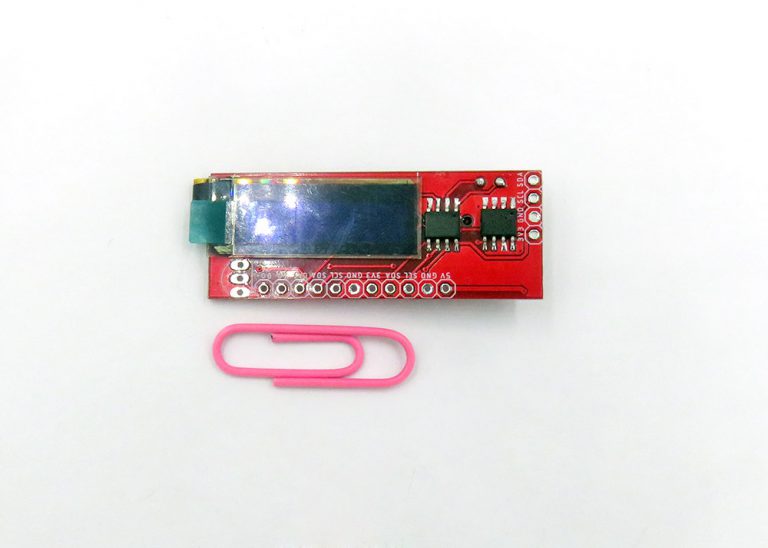

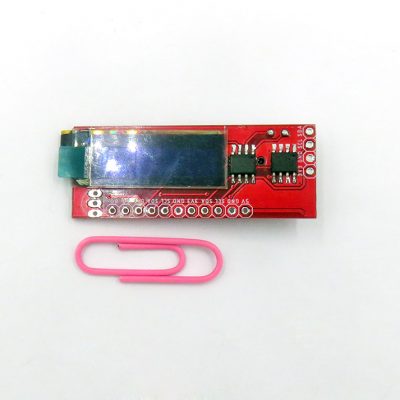

  • On board 0.91” OLED, 128×32 pixels, configure as IIC interface, drive by SSD1306. Color Blue.
  • On board AT24C02 small size EEPROM (256 bytes), can save a few data for user

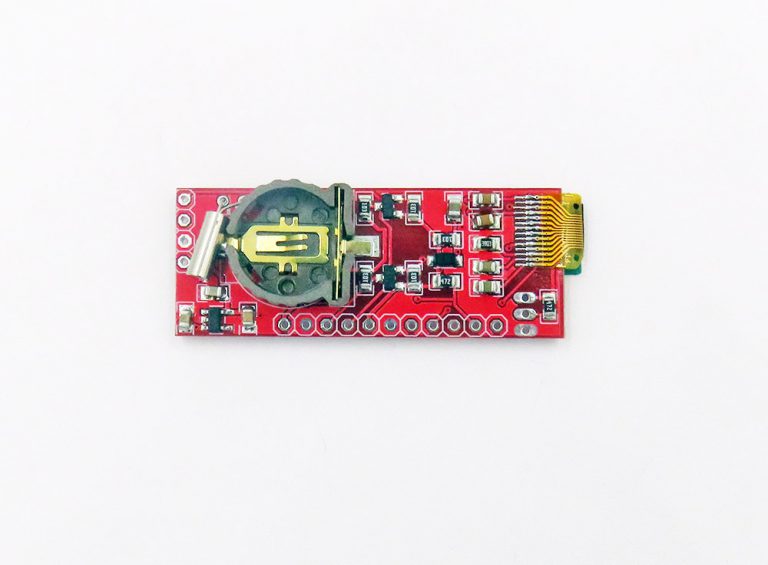

  • On board DS1307 RTC clock, with backup battery holder.
  • On board logic shifter and 5V-3.3V regulator, can use 5V logic and power supply, or 3V group logic and power supply.
  • Reserved DS18B20 temperature sensor socket, output to DQ pin.
  • Two groups of 3.3V, GND, SCL, SDA IIC interface, cascadable design, can connect as many IIC devices as you want.
  • Interface:
    • two groups pins: 3.3V GND, SCL, SDA (3.3V logic)
    • DQ, SQ, BAT pin: DS18B20 one wire output pin DQ, DS1307 time output pin SQ, DS1307 backup battery pin BAT.
    • 5V GND, SCL SDA (5V logic). LDO supply up to 500mA/16V.
  • Read write EEPROM, print data to OLED demo sketch here. Schematic see here.
