Description

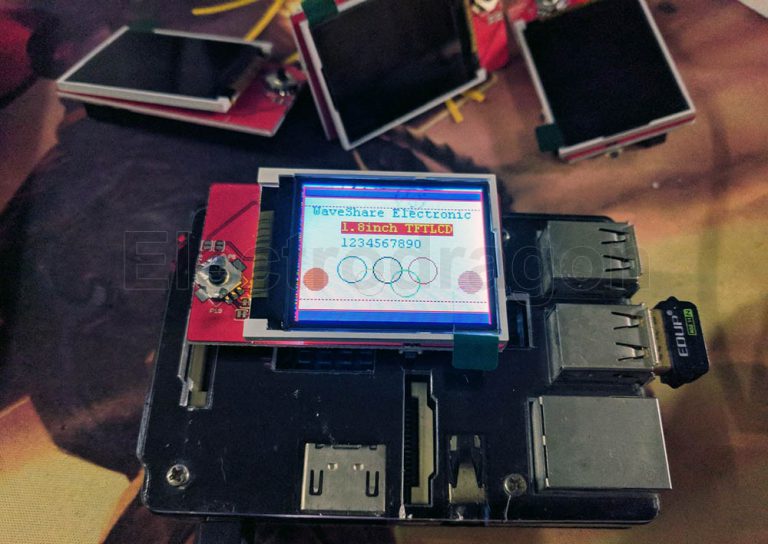

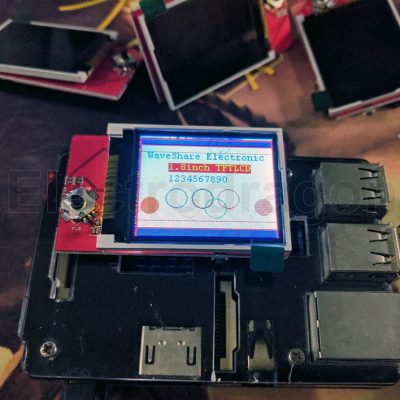

  • On Board a 1.8” LCD, ST7735, 128*128, SPI interface LCD. This is a small size, easy to use LCD.
  • On board a joystick controller, RPI control pins: up-p6, left-p5, down-p26, right-p19, press-p13

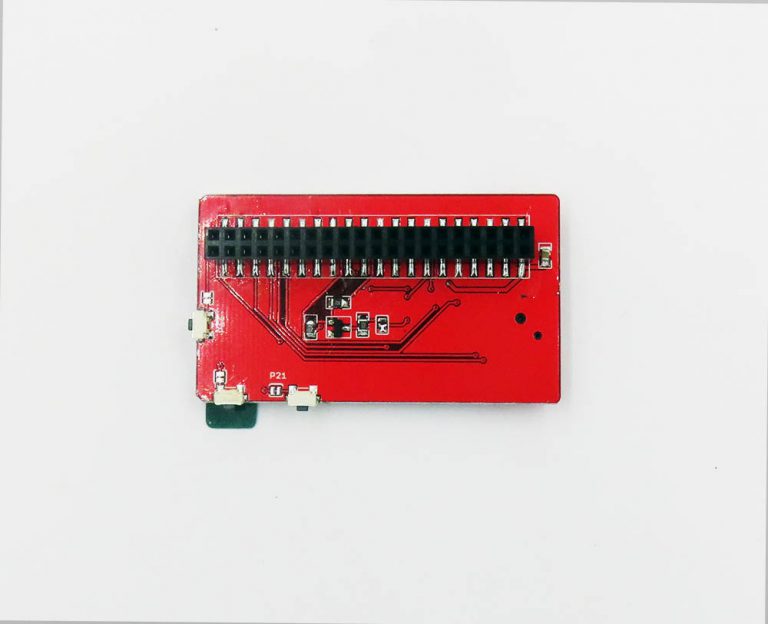

  • Extra three side press buttons P16, P20, P21.
  • All joystick and buttons connection can be disconnected by cutting off the jumpers.
  • Back side LCD back light control by IO P24 or directly connect to ground, via jumper. (Default connect to ground, no need to control by code)
  • Please notice: only hold the PCB instead of the edge of the LCD, otherwise can drag the lcd off.

Early prototype demo video.

Demo code and Schematic avaialble here.
