Mono Color HUB12 Matrix Panel Drive Board ESP32

Description

Drive the common commerial indoor or outdoor advertising screen by wireless core ESP32, support chained display.

You can find a demo video here.

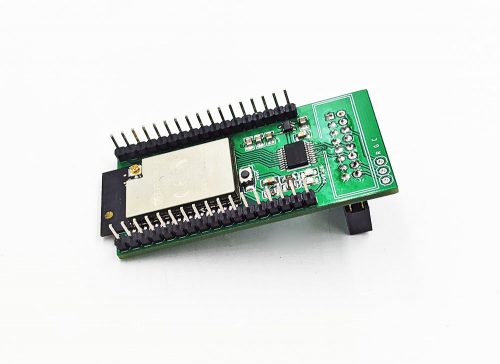

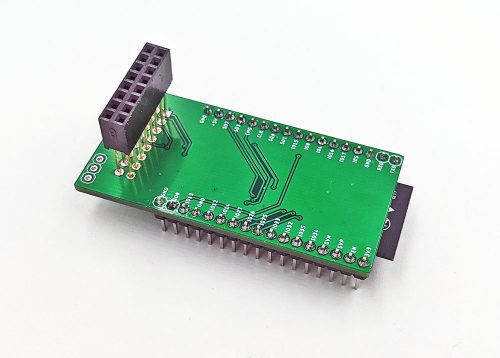

Board Features:

• Directly plug on the back on the panel. Need power supply 5V to board.
• Lead out all the extra pins which are not used by driving matrix panel.
• Add logic level shifter to drive it stable and correctly.
• On board power indicator LED, IO0 programmable LED and reset button.
• Works with arduino library DMD32.

To program the board please put the jumper on IO0 and GND, then press reset button. Remove the jumper to use it normally.

You can order the mono color HUB12 matrix panel here.

You can find programming guide here.
