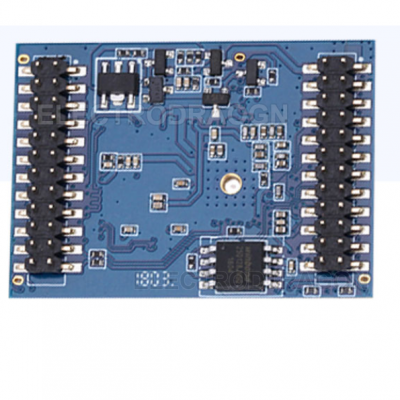

MT7688 WIfi OpenWRT Mini Core Board WY7688

Description

This is a wifi module based on MTK (MediaTek) MT7688AN SOC chip solution. CPU frequency up to 580MHz, onboard 16MB Flash, 128MB DDR2 memory, 300M wifi speed, external USB 2.0 Host, GPIO, UART, I2S, I2C, sd card interface, SPI, PWM, Ethernet interface, wifi antenna interface.

The module is small in size, low in power consumption, low in heat generation, and stable in transmission performance of wifi and network ports. Run openwrt (linux) system, which can run stably for a long time. The peripheral circuit of the module is very simple. It only needs to add 3.3V DC power to start the system and can be controlled by WIFI. With a gold-plated pin header, it can be attached to the base plate very stably.

Can be used in smart home, IP camera, VOIP, remote control aircraft, remote video surveillance system, portable 4G router, audio intercom, simple WEB network server, simple FTP server, remote download, remote control visual car and many other applications.

  • Supported operating system: The atest version of Openwrt (linux) 15.05.1 preloaded
  • Processor MT7688AN MIPS 24KEc
  • System frequency 580MHz
  • Memory 128MB DDR2 RAM
  • Storage Flash 16MB Nor flash
  • Ethernet port 5 WAN/LAN 10/100M adaptive
  • USB interface 1 USB 2.0 host interface
  • UART serial port UART0 (default is debug), UART1, UART2
  • GPIO port total 40
  • I2S 1 channel, support VOIP application
  • I2C 1 channel
  • SPI master 2 (one of which is occupied by flash and the other is idle)
  • SPI slave 1
  • PWM 4 channels
  • Operating voltage 3.3V ±10%
  • Average power consumption 0.6W
  • Supply current requirement of at least 500mA
  • Antenna interface IPEX
  • Working temperature -20~60°C
  • Wireless protocol support IEEE802.11 b/g/n
  • Wireless rate 1T1R, up to 150Mbps
  • RF power up to 18dbm
  • Wireless transmission distance of 100 meters (open area)
  • Wireless working mode routing, AP, relay, bridge

Documentatinon, schematic, pin definition please see on this page.

Additional information

Weight 0.02 kg
