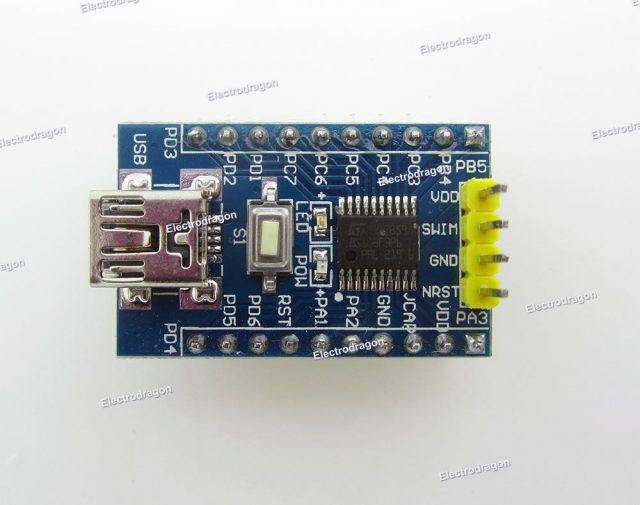

STM8S103F3P6 Mini Dev Board

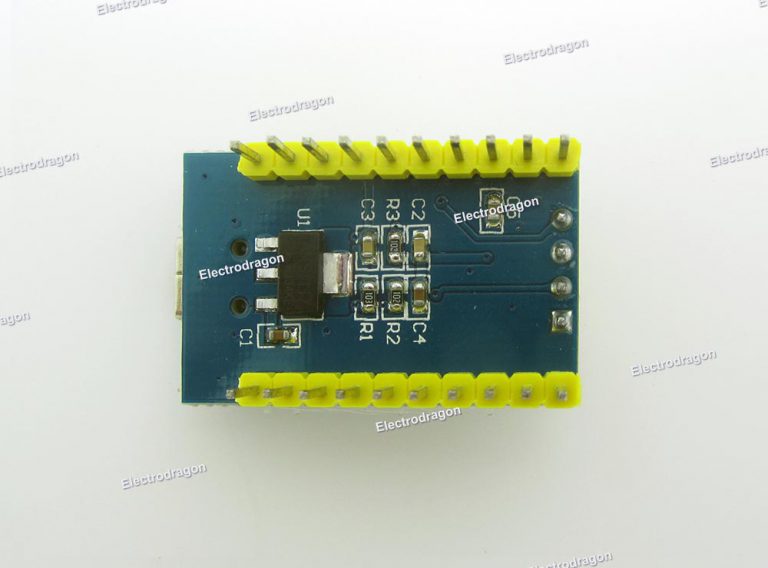

STM8S103F3P6 Mini Dev Board 02
STM8S103F3P6 Mini Dev Board

[chip-hold]STM8S103F3P6 Mini Dev Board

Bluetooth IO Control Board EDR 2.0, BLK_IO
4.00 out of 5
5 customer reviews|Add a review

$1.30

Availability: Out of stock SKU: DOD1014 Category: Tags: , , ,

Description

  • This is a new STM8S103 development board, all the pins are lead out.
  • It can be powered by USB 5V, SWIM or power pins, board includes AMS1117-3.3V LDO to convert USB 5V to 3V3 VDD.
  • Support SWIM programming.
  • Including Power LED, custom LED on pin PD3 (This should flash when you power it up) and reset button.
  • Compare to STM8S003, it has
    • bigger EEPROM up to 640 bytes (128 bytes of S003)
    • can re-flash more than 10K times (100 times of S003)
    • and 8K flash (4K flash of S003)

Documentation:

Additional information

Weight 0.015 kg

5 reviews for [chip-hold]STM8S103F3P6 Mini Dev Board

  1. 3 out of 5

    kermed –

    Arduino support?

  2. 5 out of 5

    marcolim87 (verified owner) –

    Very good Price and quality.
    Thanks a lot

  3. 5 out of 5

    Bernd (verified owner) –

    I like the board very much, but there is one thing to consieder when you start developing:
    The LED is not connected to Port D 3 as metioned in the description, it is connected to Port B 5.

  4. 4 out of 5

    squire@zago.net (verified owner) –

    The board I got is slightly different than the one in the picture. It has an F2 instead of an F3 (4KB flash vs. 8KB) and no headers. Inventory error??? Not really a big deal for me though as I’m only exploring stm8 chips

  5. 3 out of 5

    Chao (store manager) –

    Hi, I just checked our stock, it is F3P6.

    If you got wrong chip, I guess it is still our mistake, this is a reselling item, and could be wrong by supplier. The chip supplier of STM8 and STM32 is very tight and expensive now here, so supplier could use slightly different version instead? Sorry for this problem anyway. and Best regards,
