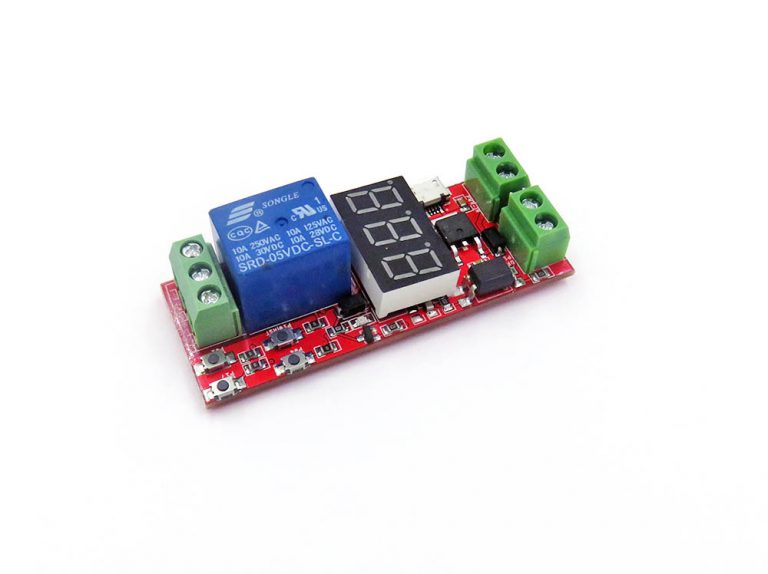

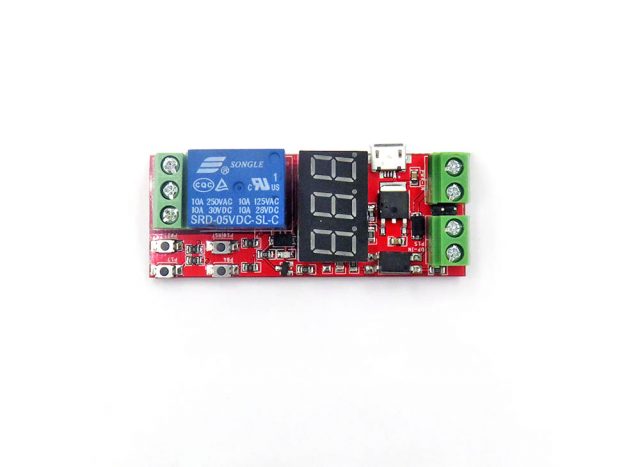

Intermittent Switching Relay Module, N76E003 MCU

$2.70

SKU: SCU1050 Category: Tags: , , ,

Description

Control:

  • Based on MCU N76E003 controlled relay board, relay active on and off intermittently
  • Can set 0~999 seconds (16-17 minutes) after to turn on relay. (also can program to 999 minutes or maybe hours in more complex level)
  • Also can set 0~999 after to turn off relay or hold on relay.

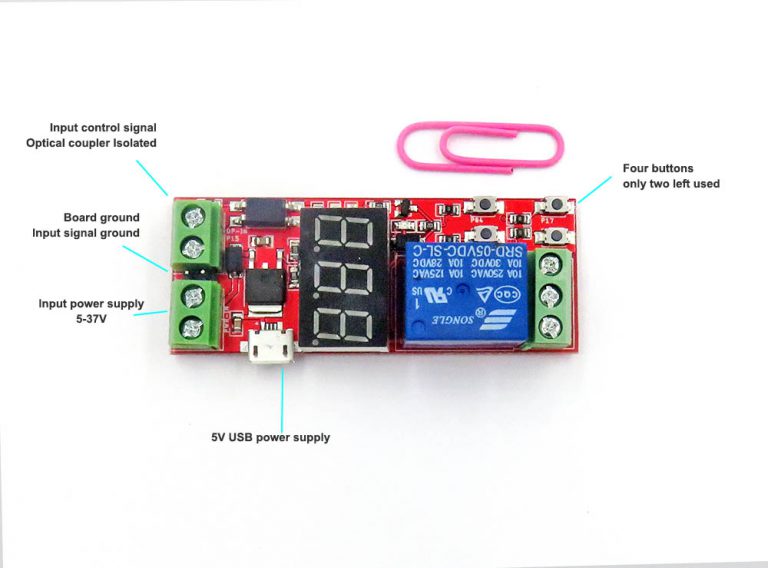

  • One extra input signal, can use to control board by programming.
    • fully isolated by optical coupler
    • In current demo code, will work as “emergency button”, when send signal will hold current loop to stop.
    • Can also connect to board ground, to eliminate the isolation
  • MCU flashed with bootloader, you can upload code by USB-TTL debugger, no need special programmer.

Power Supply:

  • Wide range input voltage 5-37V by regulator LM317
  • Protective diode to prevent wrong direction power connection.
  • Support USB power.

Other Features:

  • On board songle SPDT relay 10A /28VDC or 240VAC.
  • On board segment display to show timing.
  • One relay signal led indicator
  • Two config buttons, only two used.

Use Guide and demo video please see on this page.

Additional information

Weight 0.02 kg
