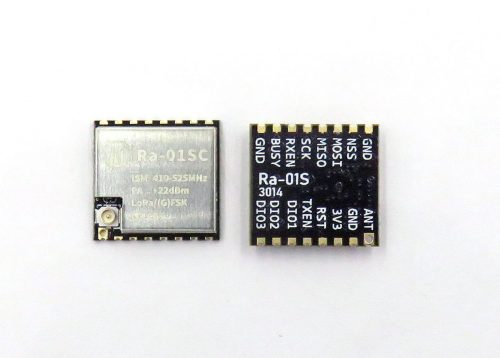

LoRa RF Transceiver Module RA-01SC LLCC68


SKU: NWL1103 Category: Tags: , , ,


Chip Features:

  • Based on LLCC68 chip, -129dBm high sensitivity, +22dBm Power Output.
  • Ultra long range transmission, highly reliable and low cost.
  • Compatible FSK modularization Technology
  • Use LoRa spread frequency RF technology, solved the common RF problems: long range, against interference, power usage, etc

Board Features:

  • Very cost effective
  • SMD-16, 17 x 16 x 3.2 mm
  • SPI interface. rate 300Kbps
  • Frequency 410-525 MHz
  • IPEX antenna connector
  • +22dBm
  • Power supply 3.3V, request 200mA current
  • Tested range with spring antenna up to 2.8KM

Datasheet, documentation please see this page.

Additional information

Weight 0.02 kg
