This is a newly designed product, with a prolific production company PL2303TA Taiwan chip, PL2303TA provides a full-duplex asynchronous serial RS232-like device to connect to any Universal Serial Bus (USB) host can be a convenient solution. PL2303TA perfectly compatible win XP / VISTA / 7/8 / 8.1 system can be...
PL2303 USB to TTL programmer, integreated into the cable, not a board any more, easy to use and pretty well protected. Cable Length 1 meter. Same function of CP2102, FTDI 232 IC, etc, used for prgramming or updated firmware of TV box, AVR, etc. Pin Definition: Red - VCC (5V), Black - GND, ...
Feature: Use the PL2303HX high speed and stable control IC Over current protection Two LED for data transferring status 3.3V and 5V is avaiable Paralleled pins make it more convenient than vertical pins. Support Win7 Entire Board are covered and protected by the high quality and transparent heat-sensitive membrane, so the entire PCB...
Pin definition: A = R + B = R - Y = T + Z = T- To run a loop test, connect A->Y, B->Z. Connect USB-TTL bridge for example PL2303TA, TXD to RXD, RXD to TXD, 5V-5V, GND-GND. RS422 interface, two-way communication, full duplex. A B Y Z...
Ganurteed genuine IC, to ensure high speed data transfer and stable usage. This is a redesigned CP2102 module, fully compatible with arduino pro mini, why? because all the pins are same as our FTDI basic board, and most important is the DTR pin enabled as FTDI, so you can directly upload...
Board Resources: Onboard USB BSL program download PL2303HX, you can download the program for itself or other board. High quality capactiors. Comes with 2 independent button input. Onboard manual reset button. Wireless NRF24L01 connector Comes with 4 test LEDs Buzzer circuit, can be used to play music Provide 32.768KHZ and 8MHZ two...

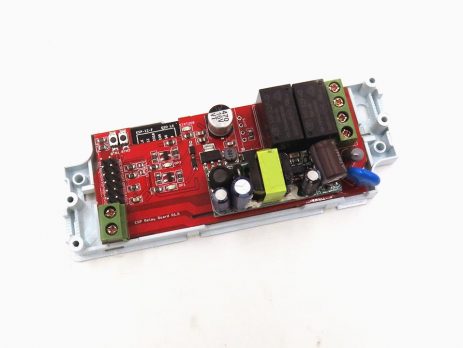

The purpose of this design is for learning how to play with the hardware and software of a IOT project, it is based on price competitive wifi module ESP8266. Hardware Features Based on ESP-12F ESP8266 Wifi Board This relay board use one AC input, and supports two relay AC output. Please note...
A simple breakout board of ESP8266 on breadboard can do most of NodeMCU work. Also need a PL2303 USB-TTL programmer Most wifi embedded project will not have too much input and output resource to let the user enter the wifi SSID and password info, so we normally config this via phone app....
You will need firmware, NodeMCU flasher to flashing the firmware, and Esplorer GUI to test the firmeare. All the tool you can find it here. Wiring as below use a PL2303 USB-TTL here: TX-RX, RX-TX, GND-GND, 5V - VIN (more…)
We are working on some boards that can directly communicate with PC these days, so here comes with three most typical boards: USBASP: A wonderful programmer tool we have, do most of programming work, it also using V-USB interface. Atmega32u4 small breakout board: Similar to arduino leonardo and arduino micro, plug the...
