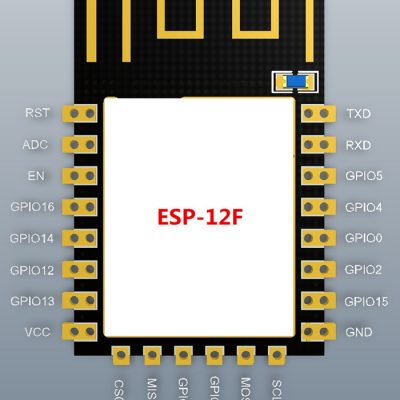

ESP-12F 02ESP-12 04ESP-12FESP-12F pins

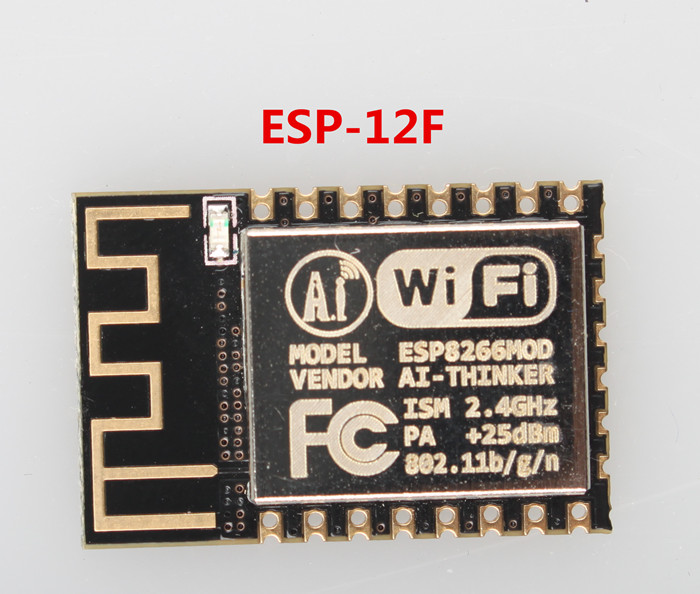

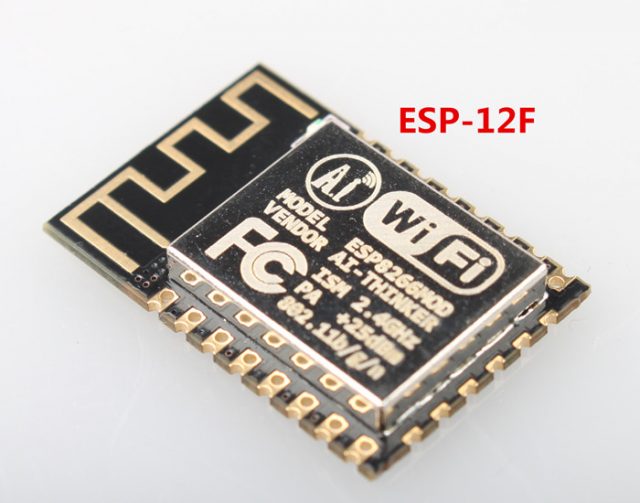

ESP-12F ESP8266 Wifi Board

0 out of 5 based on 8 customer ratings
(9 customer reviews)


SKU: NWI1059 Category: Tags: , ,

Product Description

  • Breakthrough design, there are new breakthroughs, based on ESP-12E.
  • The new four-layer board design.
  • The new revision antenna RF performance optimization, communication distance is increased by 30% -50% compared to ESP-12E!
  • Semi-hole chip technology, the whole IO leads, with metal shielding shell
  • Passed FCC & CE & RoHS certification
  • Built-board PCB antenna
  • 4M bytes SPI Flash for programming.

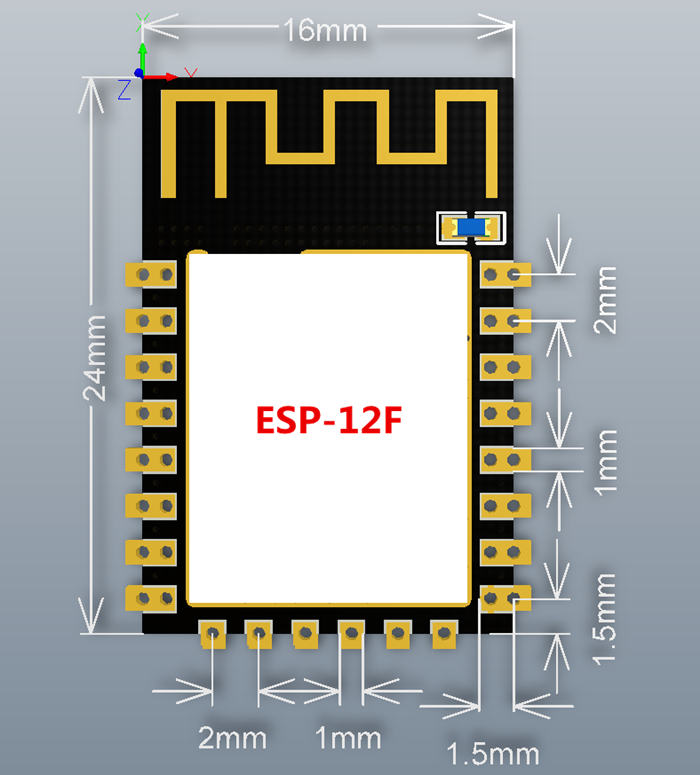

Pins and footprint are fully Compatible with ESP-12E and our relevant breakout board.

Most of the documentation can refer to ESP8266 page. (ESP-12F datasheet)

Price break: $2 for more than 50-199pcs, $1.9 for more than 200pcs order. Price will automatically update in cart page.



Additional Information

Weight 0.01 kg


9 reviews for ESP-12F ESP8266 Wifi Board

  1. 5 out of 5


    will this work with ESP8266 SMD Adapter Board R2 ?

  2. :

    Yes, fully same as ESP-12E, and relevant breakout board.

  3. 5 out of 5

    (verified owner):

    Like ESP-12E but better antenna design. Very good

  4. 4 out of 5

    (verified owner):

    great value

  5. 5 out of 5

    (verified owner):

    Recommended by electrodragon as replacement for the ESP-12E module. Pin compatible, and it works great.

  6. 5 out of 5


    Interesting module, easier to use on a breadboard than some of the other ESP12 modules

  7. 5 out of 5

    (verified owner):

    My favorite module to build into any PCB for WiFi needs. Good price and always pleasantly surprised on delivery times.

  8. 2 out of 5


    Can I program it via Arduino IDE – C/C++ programming language ?

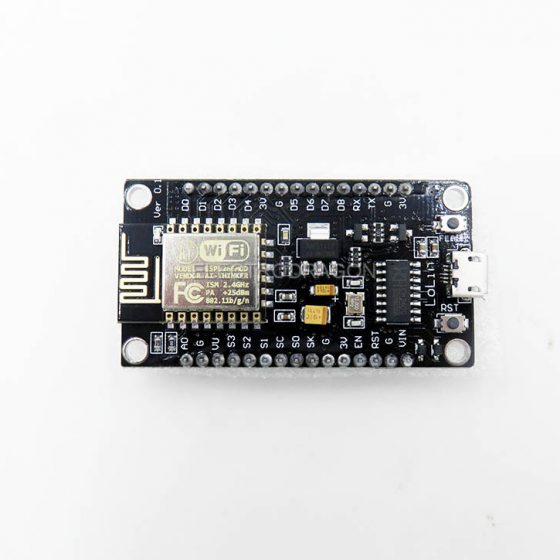

    I’m using Node MCU V3 – 12E because it has Board choice in Arduino IDE but there is no 12F model.
    please give me to do list for program it in Arduino IDE.

  9. 3 out of 5


    Hi, They have a github page, you can find how to install and use here:
