Basic Soldering with 0805 SMD components

We tried how to solder some basic SMD device, like 0805 package resistors, diode, capacitor, etc, there are some differences with the normal through hole soldering.First I got the SMD training PCB board here:

New Home Page

This is a basic PCB board can solder a few these SMD components on it free almost no any function on it, but you can use multimeter to test it if soldering well.Cost $1.8 for entire kit!

And there are more stuffs need:

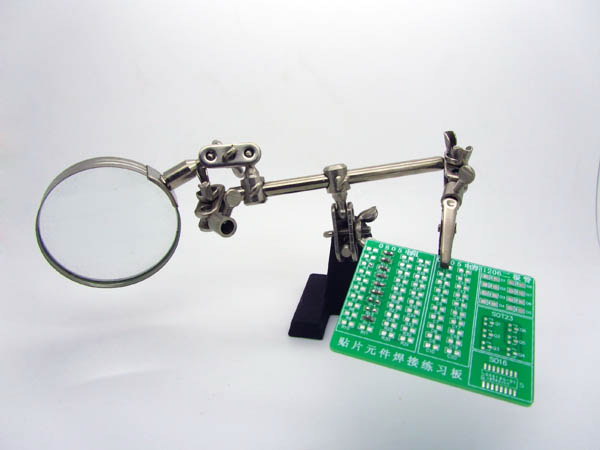

That’s all of it for basic. Put the Board on the soldering rack.

Now see the picture, put some solder with your normal soldering iron on one side of the 0805 resistor pad, can be left or right, I choose the right, Look at the resistor I did R21, R24, R23.

And use tweezer grab your 0805 package resistor, and put it on the pad, heat it up with your iron, the resistor will be soldered on the pad on the one side, Now look at resistor R22.

Now put some more soldering on other side! it’s the left side pad for me, now it’s fully soldered, still look at the resistor R22.

Now, it’s all done, you can take a look at the components I did on the board, Resistor, capacitor, diode and an SOT 23 component.

Unluckily, I didn’t solder the SOT 16 sucessfully.You can view more info on our documented side here.
