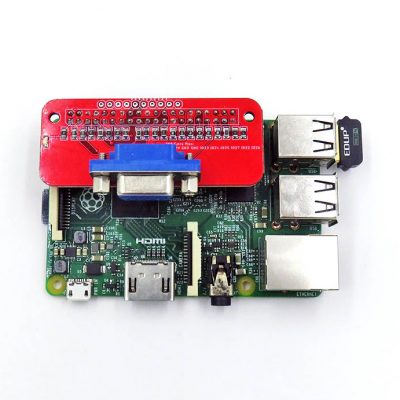

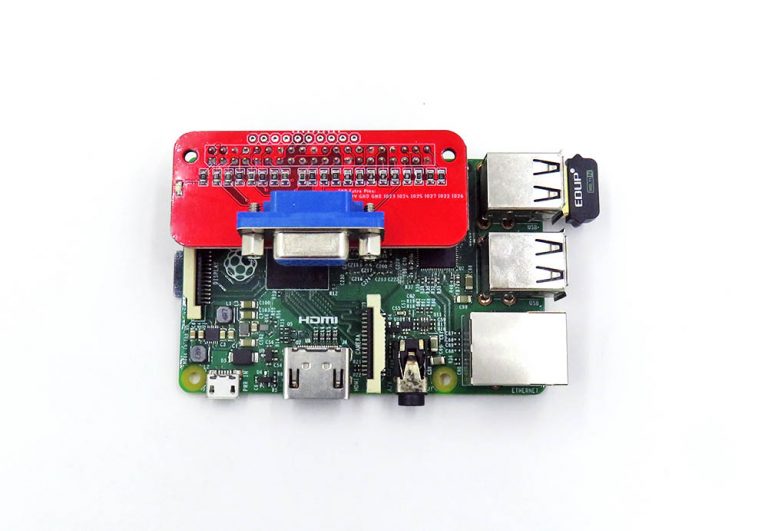

GPIO to VGA Convert Board DPI-LCD for Raspberry Pi

$2.00

SKU: MPC1105 Categories: , Tags: , ,

Description

Connect your old raspberry pi which does not have HDMI connector to VGA display, or defective HDMI Rasberry Pi (RPI) to VGA display.

  • This is a small size covert board, use all RPI GPIOs to VGA interface.
  • On board power indicator LED.
  • RPI interface 2×20, all extra none used pin lead out and grouped on board -> 5V, 3.3V, GND, GND, IO23, IO24, IO25, IO27, IO22, IO26.

Use guide, schematic please see on this page, DPI LCD section.

Additional information

Weight 0.015 kg
Interface
