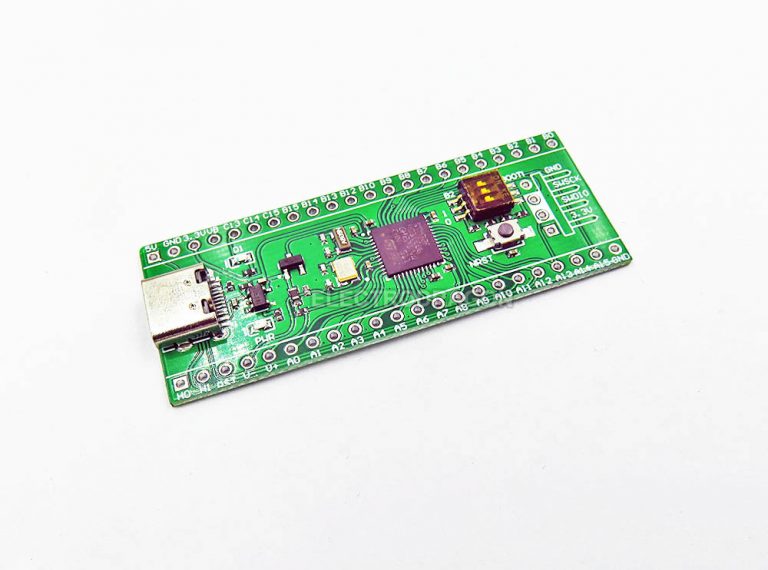

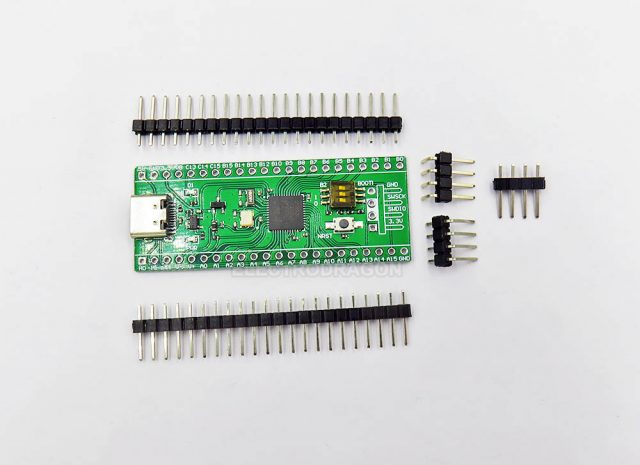

STM32F401 Mini DEV Board, STM32F401CCU6

Description

• Based on F4 series cheapest chip STM32F401CCU6, competitive price to F1 series
• But faster speed and own the float calculation function
• Board lead out all IOs for use.

On board resources:

• VB can connect coin battery power supply
• On board 32.768Khz crystal, and 25Mhz main crystal
• Typc-C programming port
• V+/V- can connect external ADC reference voltage, default to power voltage.
• B2 boot select pin is selectable for boot configuring or normal GPIO.
• SW debug port
• Reset buttons.

Schematic please find on this page.
